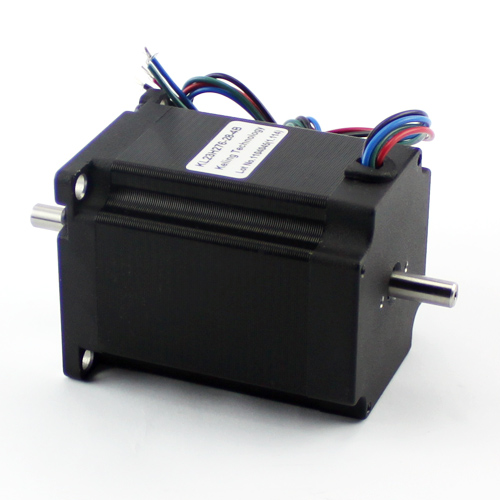

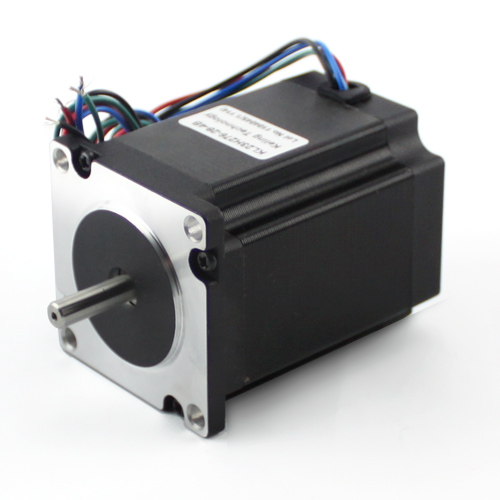

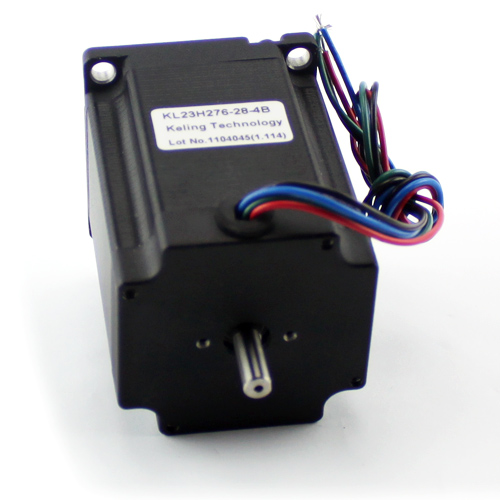

NEMA23 270oz/in 2.8A 1/4″ Dual Shaft Stepper Motor (KL23H276-28-4B)
Sale!

NEMA23 270oz/in 2.8A 1/4″ Dual Shaft Stepper Motor (KL23H276-28-4B)

Product in stock

This 270oz/in NEMA23 stepper motor is well suited to medium sized motion control projects of all types.

Price

$32.00 $25.95

You save: $6.05! (18.91%)

Loading Updating cart...

NEMA23 270oz/in 2.8A 1/4″ Dual Shaft Stepper Motor (KL23H276-28-4B)

Product Description



Electrical Specification

Manufacturer Part Number: KL23H276-28-4B

Number Of Phase: 2

Step Angle: 1.8 deg

Holding Torque: 270 oz.in

Rated Current/phase: 2.8 A

Phase Resistance: 1.13 ohms± 10%

Inductance: 3.6 mH ± 20% (1KHz)

Physical Specification

Frame Size: 56.4 x 56.4 mm

Body Length: 76 mm

Shaft Diameter: Φ 1/4"

Shaft Length: 20.6 mm



Connection

A+
A-
B+
B-
BLK
GRN
RED
BLU



Drawing:
KL23H276-28-4B (6577)

Torque Curve:
KL23H276-30-4BT (1650)
