NEMA17 Stepper Motor (KL17H248-15-4A) for 3D Printer, 76 oz-in

Product in stock

Price

$9.25

Loading Updating cart...

NEMA17 Stepper Motor (KL17H248-15-4A) for 3D Printer, 76 oz-in

Product Description

Click for 3D Printer Filaments.

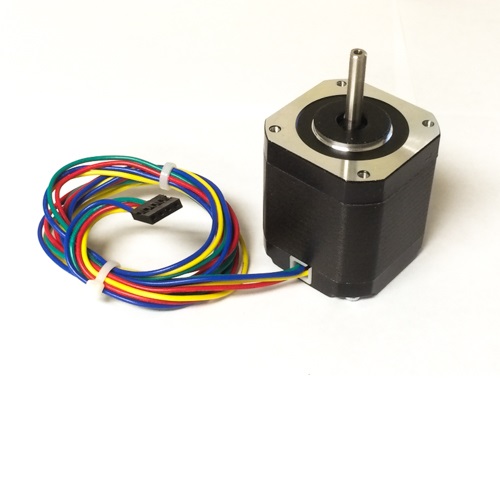

NEMA 17 BIPOLAR STEPPER MOTOR, KL17H248-15-4A, 76 oz-in

Specifications:

Shaft: 5mm diameter with flat

Current Per Phase: 1.5A

Holding Torque: 5.5Kg.cm (76 oz-in)

Rated Voltage: 4.2V

NO.of Phase: 2

Step Angle: 1.8° ± 5%

Resistance Per Phase: 2.8Ω± 10%

Inductance Per Phase: 4.8mH± 20%

Insulation Class: Class B

Dielectric Strength: 100Mohm

Operation Temp Range: -20 ~ +40° C

Lead Wire: 22AWG / 750mm with connector to stepper motor driver

Red- 1A

Green- 1B

Yellow- 2A

Blue- 2B

Manuals  Download:

KL17H248-15-4A (2482 downloads)

Torque Curve:

KL17H248-15-4ATorque (2297 downloads)

MotorTC (6136 downloads)
