1.5KW VFD Spindle Inverter (KL-VFD15), 220VAC input

Product in stock

Price

$139.95

Loading Updating cart...

1.5KW VFD Spindle Inverter (KL-VFD15), 220VAC input

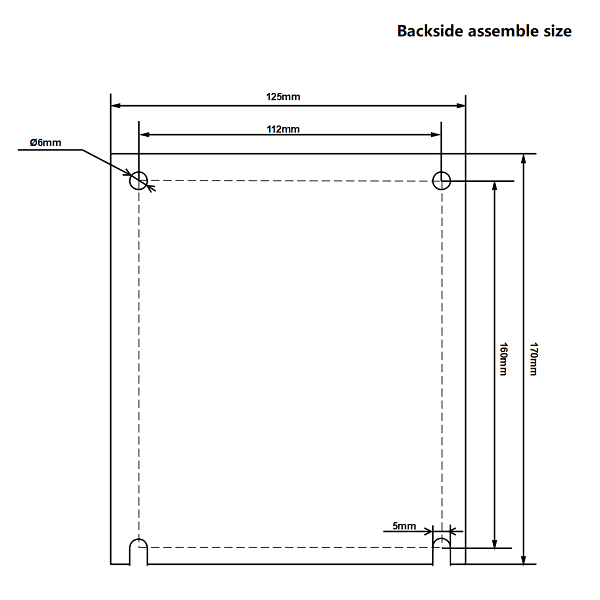

Product Description



Led Display
Input: (1 or 3 phase)

Input Voltage: 220±15%     50/60Hz,

Output: 0-240V 1.5kw  (U,V,W)

Frequency Range: 0.1-400Hz

0-10V Analog interface capability

Variable speed potentiometer

VFD Parameter set:

PD000=0 for Parameter unlock ( 1 ) for Parameter Lock

PD001=0 (1 For Remote Control)

PD002=0 ( 1 For 0-10v Terminal Control or Remote Trim Pot Control ) ( J1 Also Needs to be set for Terminal Control )

PD003=400

PD004=400

PD005=400

PD007=20

PD008=220 (Motor Rated Voltage, If you have 120v spindle then set to 120v )

PD009=15

PD010=8

PD011=120 ( 100 Minimum Setting with Quality VFD, 120 is Safe)

PD13= 08 is for Factory reset, Only use this to set VFD to Factory Default Settings

PD014 Acceleration=12 ( Adjust to suit)

PD015 Deceleration=12 (Adjust to suit) ( PD15 is ignored IF PD26=1 Then the Spindle will Coast to a Stop)

PD141=220 ( Motor Rated Voltage ) (120 for VFD Rated for 120v )

PD142= ( Motor Max Amps)
PD142=( 220vSet for your motor Amp Rating 2.2Kw Spindle 9 amp )
PD142=( 220VSet for your motor Amp Rating 1.5Kw Spindle 7 amp )
PD142=( 220v Set for your motor Amps Rating 800w Spindle 4 amps )
PD142=( 120v Set for your motor Amp Rating 800w Spindle 7 amp )

PD143=2 ( Motor Number of Poles)

PD144=3000 (Max Motor RPM) =3,000= (24,000)

PD70=0 ( This may need to be set to 1 if Control Voltage is 0-5v )

PD72=400

PD73=120 ( 100 Minimum Setting )

Manuals & Downloads
VFD15-22 (11964)
Thanks to our customer.

click here for video by cuttingtooldesigner
