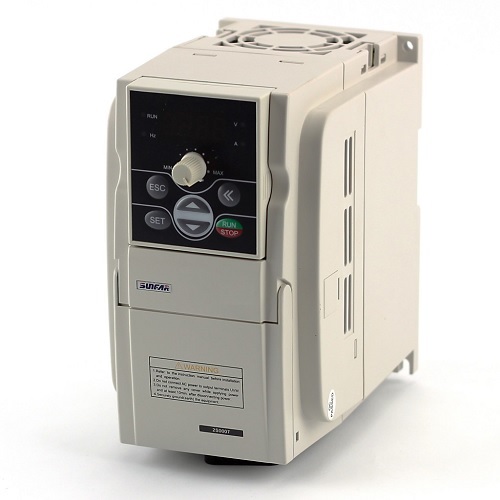

4.5KW 6HP VFD Inverter 1phase 220V 21A CNC Engraving Router Spindle Motor 1000Hz

Product in stock

Price

$299.00

Loading Updating cart...

4.5KW 6HP VFD Inverter 1phase 220V 21A CNC Engraving Router Spindle Motor 1000Hz

Product Description

4.5KW 6HP VFD Inverter 1phase 220V 21A CNC Engraving Router Spindle

Motor 1000Hz Variable Frequency Driver Inverter

Product information:

Input: 1-phase AC 220V ±20% 50/60Hz

Output: 0~1000HZ 21A

Power: 4.5 kw

F0.00 = 1  (or 3 if you want to test using the knob on the VFD)
F0.02=1001 (or 1000 if you want to test using the knob on VFD)
F0.04= 400 or up to 1000HZ set according your spindle
F0.05=10
F0.06=10
F0.11=0
F0.12=400 or up to 1000HZ set according your spindle
F0.13=220
F1.00 =0
F1.01 =10V
F1.03=0
F1.04 =400, up to 1000HZ set according your spindle
F1.08=11 ( Terminal X1 as a Run)
F1.14=8 ( Inverter Fault signal Output)
TA, Tc connect to fault output
X1 and Com connect to Run (or relay)
AI1 and GND ( 0-10VDC)

one year manufacture warranty

Features:

  1. User-defined V/F curve and torque boost function, support powerful cutting capability when processing
  2. Output frequency up to 1000Hz, support the requirement of high-speed processing.
  3. Highly adaptive to grid voltage, and can stand for ±20% fluctuation.
  4. Particular self-adaptive control technology, allowing for automatic current and voltage limitation and under-voltage suppression during operation.
  5. Configuration of RS485 communication interface, optional MODBUS protocol and self-defined protocol; with linkage synchronous control function, allowing for easily communicating inverters with PLC, industrial personal computers and other industrial personal equipment.
  6. The panel supports hog plug, applicable for system integration for various applications.
  7. Vivid real-time monitoring, allowing for monitoring input and output current, voltage and so on in real time.
    8. 4-channel multi-functional input terminal, with 29 kinds of terminal function definitions, 16 kinds of programmable status outputs, hence enabling flexible control over parameters.
    9. Having a built-in counter, able to conduct simple counting with match of functional terminals.
    10. Internally integrated and optimized PID controller, facilitating users to conduct closed-loop control over temperature, etc. Able to simplify control system structure, so as to reduce cost.



  1. one year parts warranty
