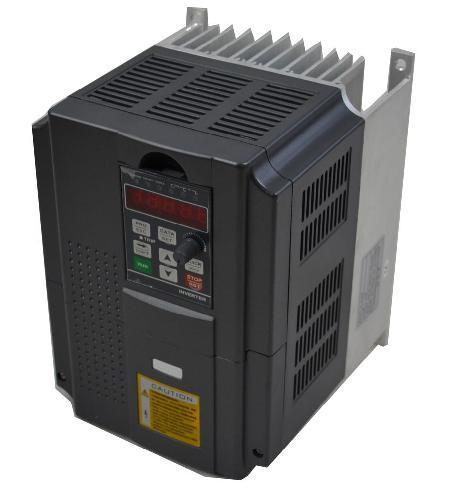

7.5KW (10HP)VARIABLE FREQUENCY DRIVE INVERTER VFD 34A
Product Description

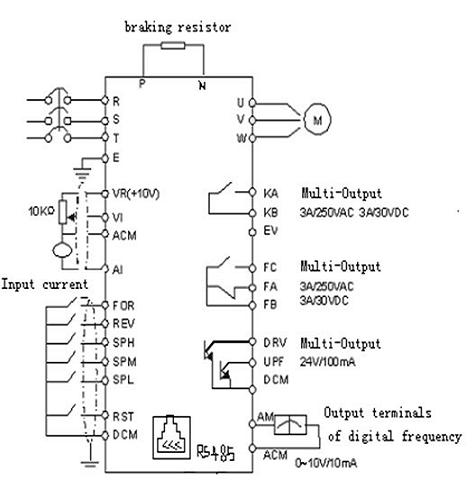

Regarding the wire connection, please connect "R" and "T" (at the inverter) to the shingle phase power supply ( connect "R" and "S" or "S" and "T" both are ok.) If you use it as three phase input, then please connect the three phase power supply to "R, S T".
"U, V, W " connect to a motor.
And the VFD need connect with the motor directly, cannot connect breaker or switch
between the VFD and motor
NEW Variable Frequency Drive, VFD
10 HP 7.5KW 34A 220V-250V
1) Input Voltage: 220V±15%
2) Output Voltage – 208-240VAC (analogous to Input Voltage)
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 OR 3 phase
6) Output Phase: 3 phase, U, V, W
7) Warranty: 1 year
Settings:
P0.00=0 (V/F Control)
P0.00=1 (Sensorless Vector Control)
P0.00=2 (Torque Control)
P0.03=300 or 400 HZ (depends on your spindle)
P0.04=300 or 400 HZ (depends on your spindle)
P0.05=0
P0.06=300 or 400 HZ (depends on your spindle)
P0.07=1 (Potentiometer on keypad)
P2.02=300 or 400 HZ (depends on your spindle)
P0.17=1 (Restore parameters as factory setting)
