Taig Gecko CNC Mill Milling Machine Engraver Router

Product in stock

Price

from $2,180.00

Loading Updating cart...

Taig Gecko CNC Mill Milling Machine Engraver Router

Product Description

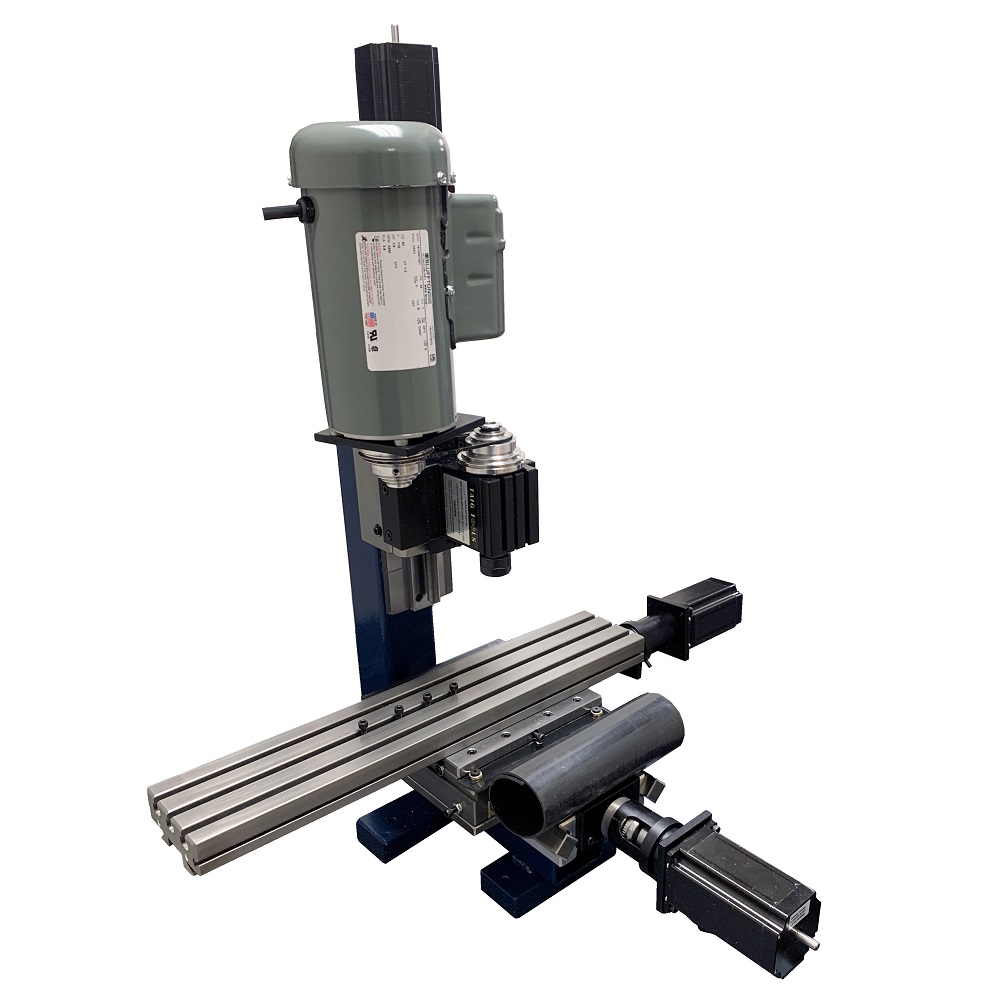

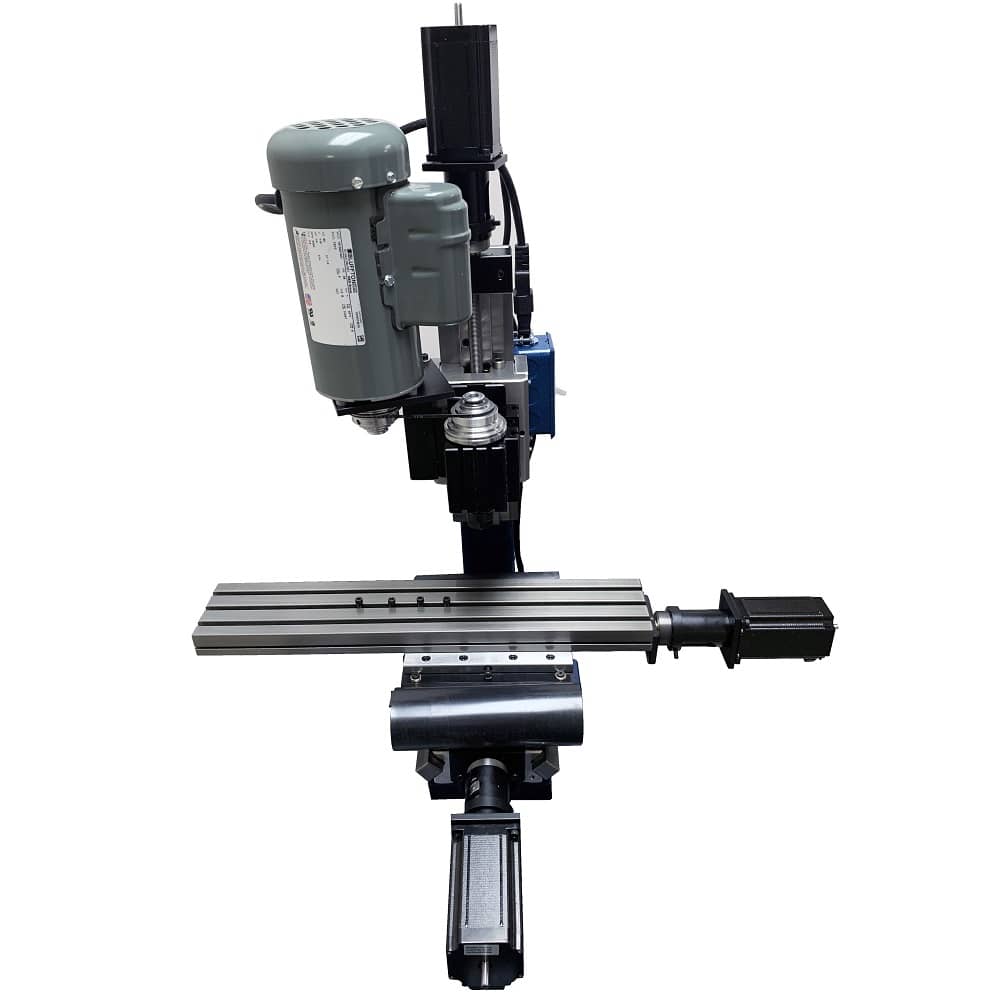

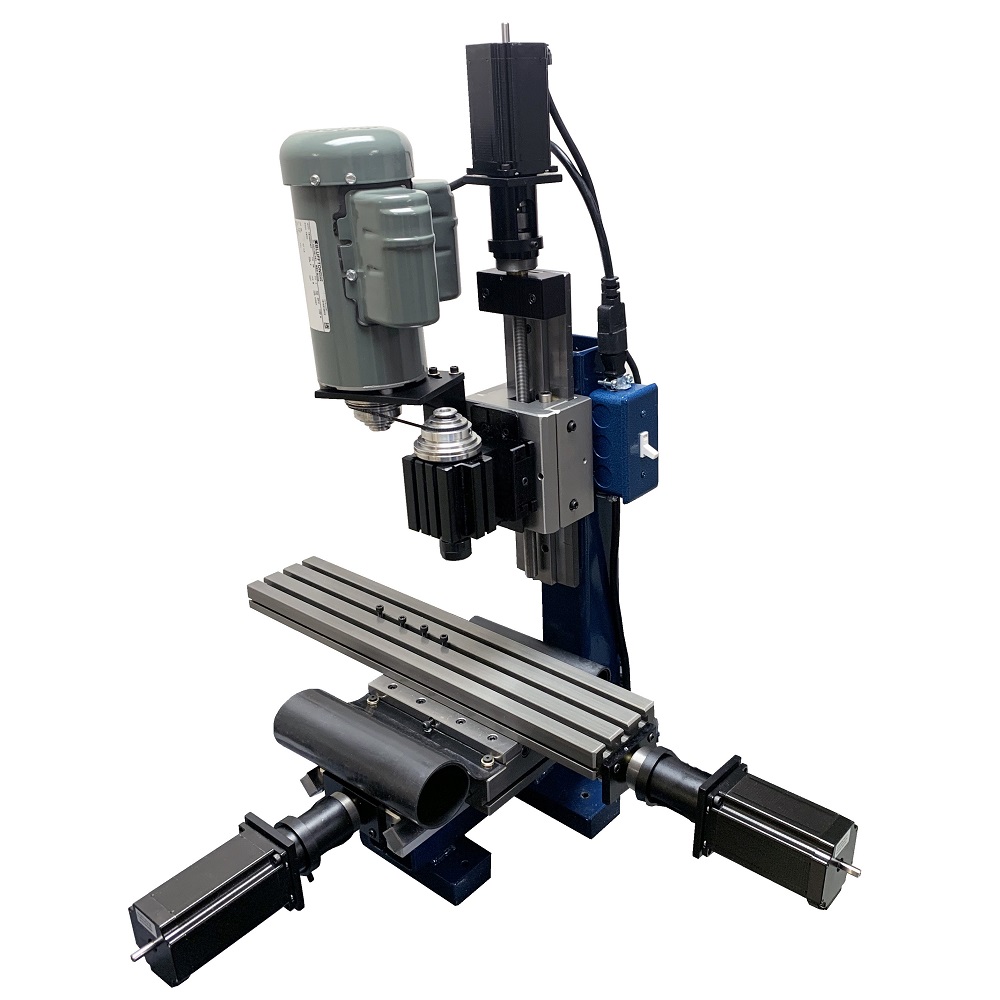

1: New USA made Taig 2019CR-ER Cnc Mill This is the bigger taig mill

1 year warranty on mill and electronics, no return accept

This includes 6 ER16 collets ( 1/16, 1/8, 3/16, 1/4, 5/16, 3/8 ) a Vise, and 2 End mills (1/8 & 3/16 inch) .

The Knob on the shaft (on the picture) is not included any more

This is a very robust and heavy machine 110 pounds of shipping weight

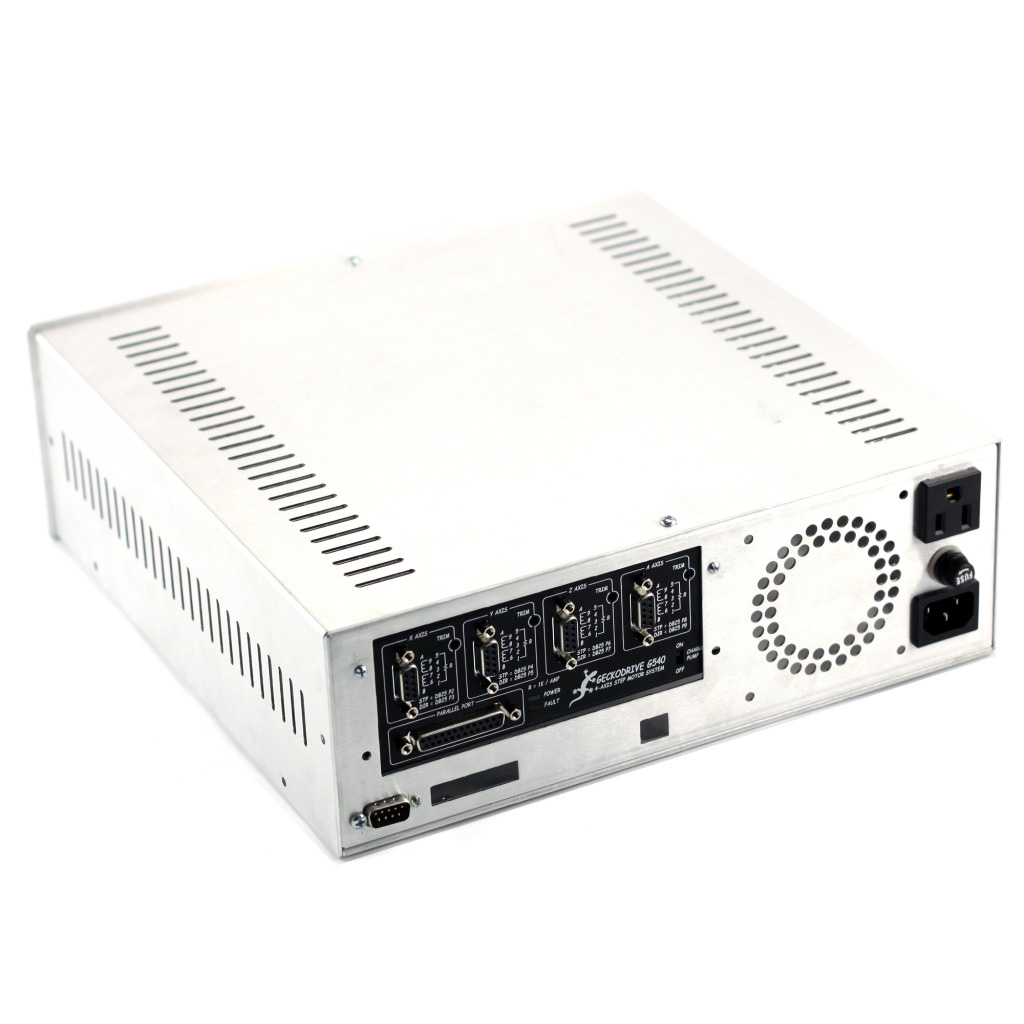

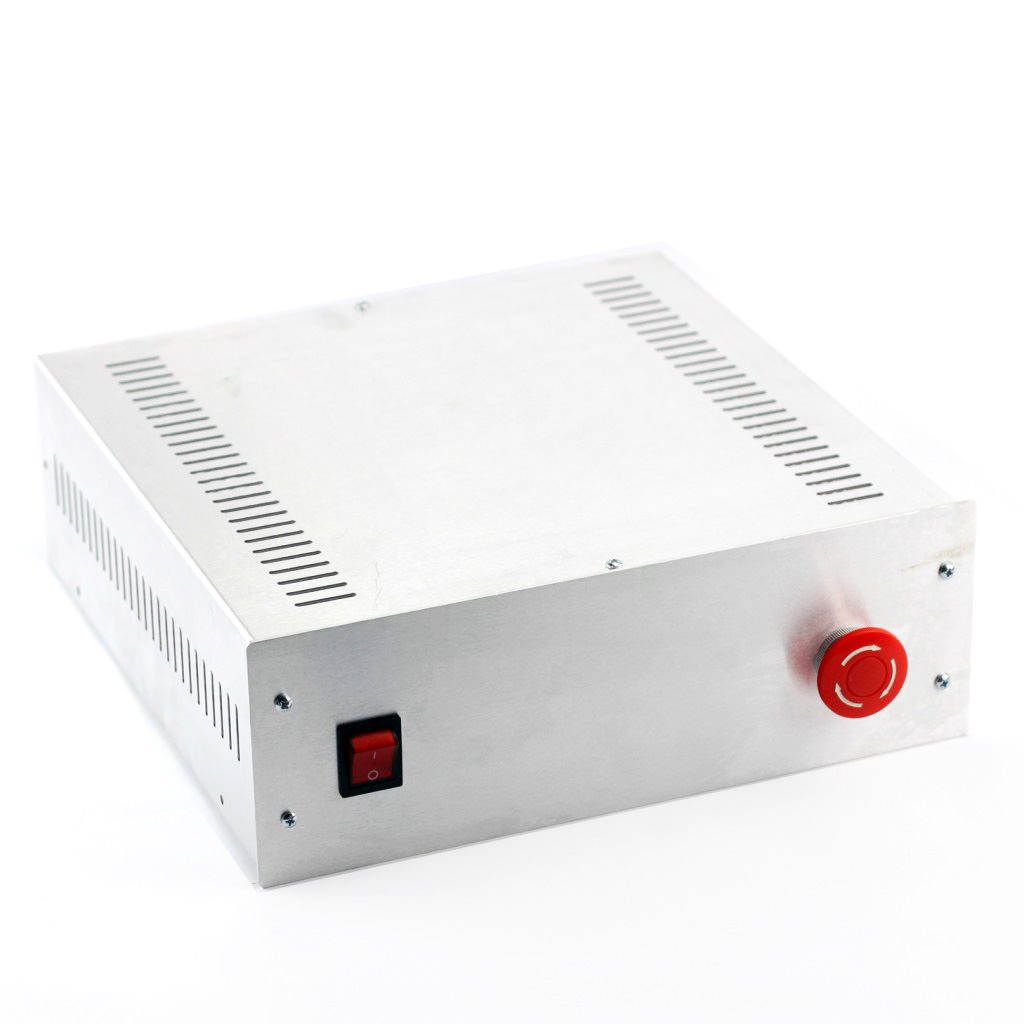

2: The controller features a 10 microstepping Gecko G540 stepper driver running at 48volts, 7.3A

Why is 48volts volts so important? Faster rapids and more power

Why is microstepping so important? Real smooth cuts

- Mid-band resonance compensation


- Auto standby current (70% current)


- Short-circuit protected


- Optoisolation on all LPT signal pins


- Two 1A at 0 to 50VDC rated outputs


- Four SPST to GND inputs (TTL)


- TRIM adjust for motor smoothness


- Easy to service, removable drives


- 10kHz watchdog timer (charge pump)

Stepper motors feature:

  1. Low inductance: NEMA 270oz bipolar stepper motors for x, y, z

  2. They produce quick rapids for faster production time

3: Milling Machine Specs:

The bottom of the slot is ½ the opening or top of the slot is 1/4

X travel

12 inch

Greatest travel

Y travel

5.5 inch

Z travel

6 inch

Spindle Motor

 ¼ hp 1100-11,000 rpm

Continuous duty for all day operation 120volt

double shaft Stepper X, Y, Z axes

270 oz in

of holding torque

Lead screw

20 tpi X Â ½ inch

Beefy

Table size

3.5 x 18.5

Big

Position increment resolution 0.000025 thats 40000 steps per inch now that is smooth

Z-Axis can swivel 90 degrees left or right

Rigid square tubular steel base and column construction

X Axis - Hard Anodized cross slide table with 45 degree dovetail ways with brass gibs


Y Axis - Precision ground prismatic steel rail ways with brass gib


Z Axis - Steel box ways with brass gibs

The X, Y, Z and A axis can cut stainless steel

We tested this controller with Mach 3 cnc control program

  1. You can add a USB UC100 to run Mach3 or Mach4 or UCCNC software:

  2. You can add a  Ethernet Board to run Mach3 or Mach4 or UCCNC
  3.  You can run  Linux CNC too using DB25 connection:

I5 LinuxCNC Control PC with 19'' Monitor

MACH 3 FEATURES

  • Converts a standard PC to a fully featured CNC controller.

  • Up to 6 axis cnc control

  • Allows direct import of DXF BMP JPG and HPGL.

  • Visual G-Code display

    Now with integrated 2d cam program

  • Generates G-code

FREE WIZARDS INCLUDED

  • Gear cutting

  • Digitizing

  • Holes

  • Slots and keyways

  • Text engraving

  • Many standard shapes

  • Surfacing

  • MANY MORE

  • Other wizards from third party vendors

The mach 3 program is not included but you can buy it from us at $149

You can also download the demo it is good for 500 lines of code (that is a lot)

The machine will be shipped in a week. you need to assemble following the instructions and video.

We will ship out in 3-4 days after the payments are done

The following items are included :

  1. Taig 2019cr er cnc mill

  2. Gecko 4 axis control box

  3. 270 oz double shaft stepper motors with cables and positioning knobs
