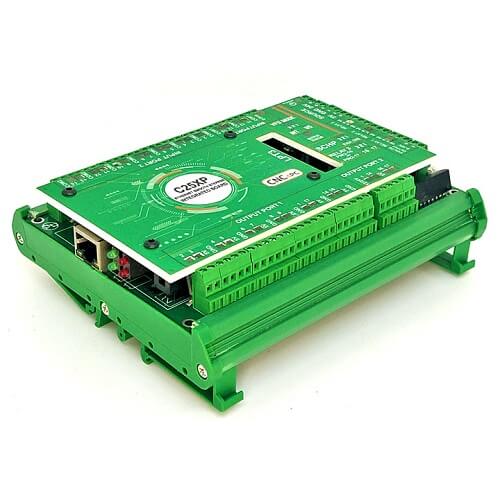

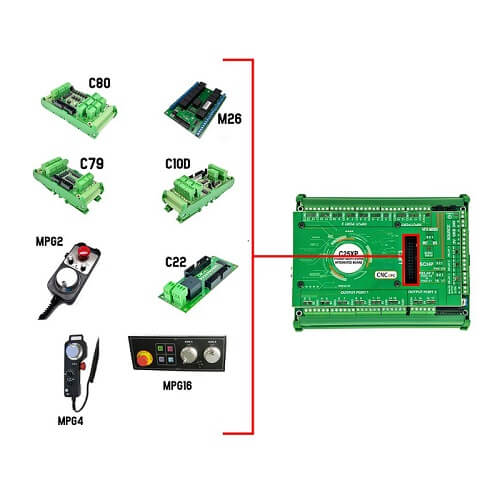

C25XP  Smooth Stepper Integrated Board:

if you need  Din Rail Support for C25xp, Add $17.8

FEATURES

• Built-in PWM-Based Speed Control and Two Built-in Electromechanical
Relays with NO and NC positions for spindle control.

• The system monitors:
– E-Stop
– Safety Charge Pump.

• Electromechanical Relay with NO and NC positions for general purpose
(Port_2 16 or 17, jumper-selectable).

• Microcontroller based SCHP.

• Optoisolated inputs working at 5-24VDC.

• Uses a single +10 to +30VDC to power the system. It generates the isolated

voltage for the spindle control circuit and +5vdc for circuits using TTL
logic.

• Status LEDs on all input and output connections.

• DIN Rail mountable.

• Open Collector Outputs pins 1, 14, 16, 17.

• Screw-On connections for all terminals.

• Status LEDs for enable.

• Available installers and configuration files that configure all the functions
of the board.

•  Ethernet Smooth Stepper Motion Controller can be installed ( Not Included), you can add it

Ethernet SmoothStepper Motion Control Board for Mach3 and Mach4, 6 Axis (Without Cable)

Add Mach3 software

Fully Licensed Mach3 (Authorized), Email you license file

Add Mach4 software

Fully Licensed versions of Mach4, Email you the license.

Manual:

C25XPR3_USER_MANUAL_V1 (98 downloads)

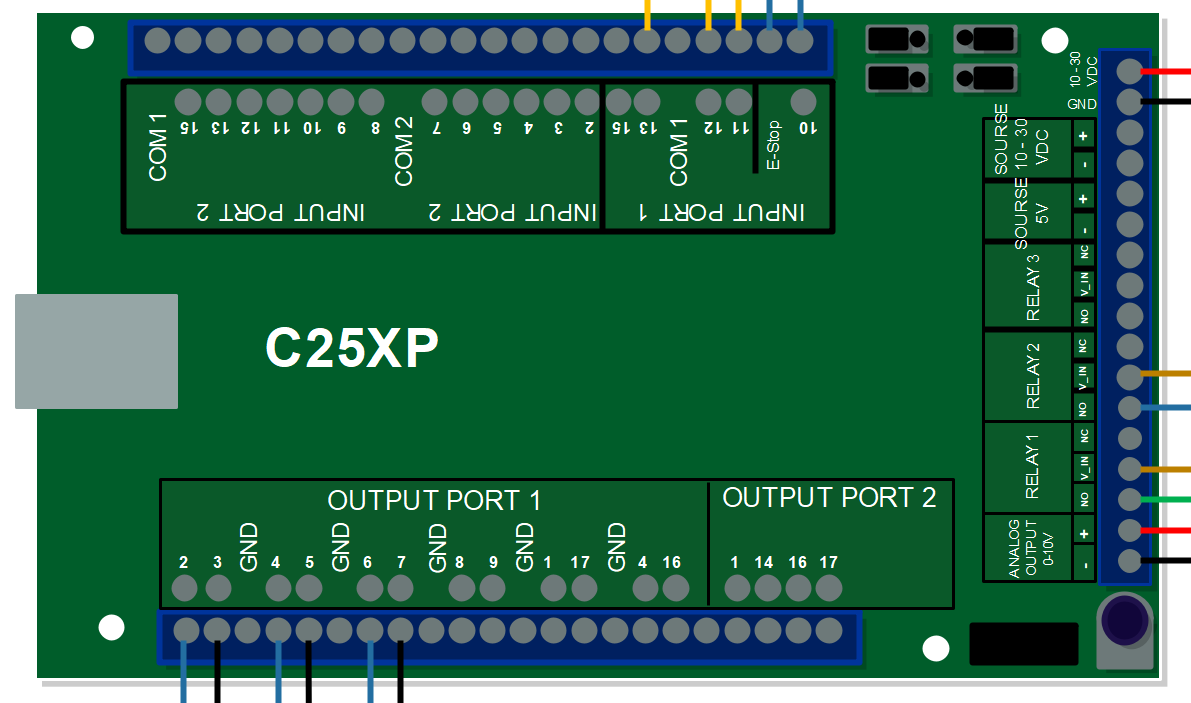

Wiring Diagram:

C25XP Wiring Diagram (83 downloads)
