KL-3200ATC Automatic Tool Changer, 220VAC, 3200W (4.3HP), Max 18000 rpm

Product in stock

Price

$3,282.00

Loading Updating cart...

KL-3200ATC Automatic Tool Changer, 220VAC, 3200W (4.3HP), Max 18000 rpm

Product Description

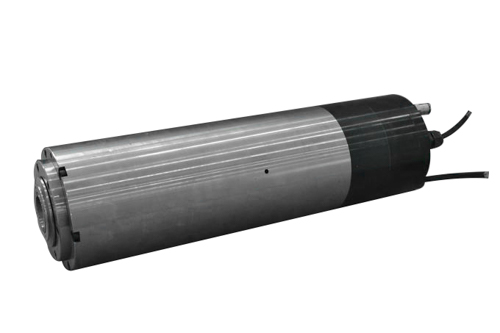

KL-3200ATC Automatic Tool Changer:

Power: 3200W (4.3Hp)

Tool Holder: BT 30

Pull Stud: 45 Degree Angle

Diameter: 110mm

Length: 398.5mm

Max Speed: 18000rpm

Cooled: Distilled Water Cooled

Pneumatic controlled

Temperature control:22-25℃

Frequency: 600Hz

Voltage: 220V

Distilled Water cooling flow: 5L/min

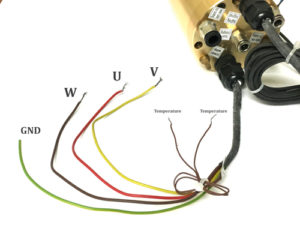

U- Red

V- Yellow

W- Brown

2x brown wires - Temp protector

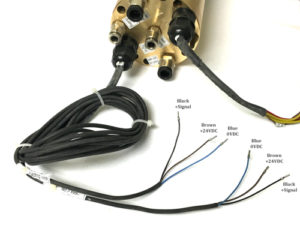

Loading Tool Sensor

Brown- +24VDC

Blue- 0VDC

Black- +Signal

Unloading Tool Sensor

Brown- +24VDC

Blue- 0VDC

Black- +Signal

Specification Download:

3200ATC (1257 downloads)

Recommend VFD for this spindle:

4.5KW 6HP VFD Inverter 1phase 220V, 1000Hz
