3 Axis CNC Stepper Control Box, Digital Stepper Motor Driver, 110VAC/220VAC for G0704

Product in stock

Price

$649.95

Loading Updating cart...

3 Axis CNC Stepper Control Box, Digital Stepper Motor Driver, 110VAC/220VAC for G0704

Product Description

Brand New 3 Axis CNC Stepper Control Box for BF20,
Grizzly 0704, Busy Bee CT129, PM-20 WMD30 king KC-20VS, Weiss
WMD20LV (110V/220VAC)

Ready to plug and use

3 Axis CNC Stepper Control Box 110VAC/220VAC:

Brand New 3 Axis Controller for any NEMA23 or NEMA34 Stepper motors:

1: 2 PCS KL-5056D Bipolar Digital Stepper Drivers, 50V, 5.6A for X, Y Motors

1 PCS KL-8070D Bipolar Digital Stepper Drivers, 80V, 7.0A for Z axis Motor

2: 1 PCS 48V/12.5A Power Supply, 115V/230V

3: 1 PC KL-DB25 or C10 Breakout Board for 6 axis, Isolated signal,

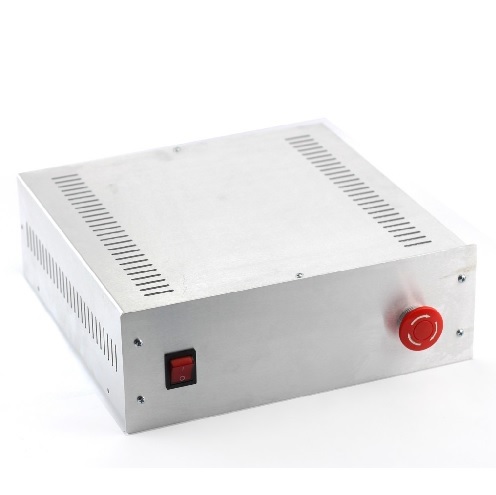

Case With E-Stop, x, y, z limit Switch wired

4: 1 PCS  Fan
5: 5V Power Supply 110-230VAC
6: Power cord
7: 6 feet Mach3 Parallel Cable DB25M to DB25M
You can update to a UC100 or ESS board

Tested with Mach3 Software

Wiring Diagram & Downloads

KL-5056DWiringC10 (12876)
Mach3 set up for kit and machine, Download here
Mach3 Setup (Mach3Mill.xml file) (10808)
Mach3setup (14618)
Mach3Tutorial (199246)
