3 Axis CNC Stepper Control Box, 50VDC/5.6A Stepper Motor Driver, with USB Connection-UC100

Product in stock

Price

$699.95

Loading Updating cart...

3 Axis CNC Stepper Control Box, 50VDC/5.6A Stepper Motor Driver, with USB Connection-UC100

Product Description

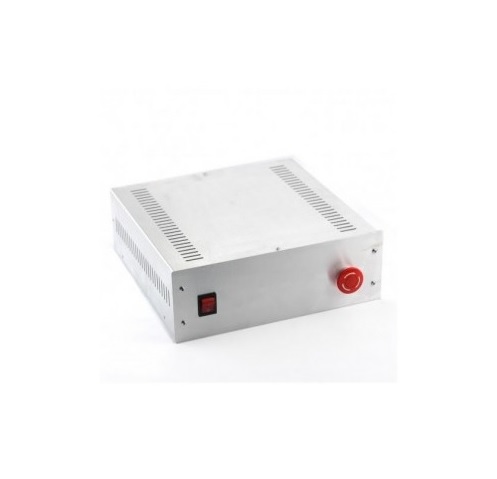

Brand New 3 Axis CNC Stepper Control Box with UC100 USB connection, with Spindle and Relay control

Working with BF20,
Grizzly 0704, Busy Bee CT129, PM-20 WMD30 king KC-20VS, Weiss
WMD20LV (110V/220VAC)

Ready to plug and use, Tested with Mach3, Mach4, UCCNC Software

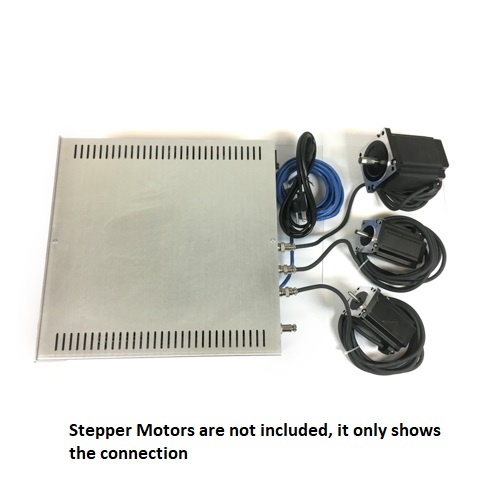

Brand New 3 Axis Controller for any NEMA23 or NEMA34 Stepper motors:

1: 3 PCS KL-5056E Bipolar Digital Stepper Drivers, 50V, 5.6 A for x,y, Z axis Motor

KL-5056E Digital Stepper Driver:

2: 1 PCS 48V/12.5A Power Supply, 115V/230V

3: 1 PC Breakout Board for 6 axis, Isolated signal,
With E-Stop, x, y, z limit Switch wired

4: 1 PCS  Fan
5: 5V/2A Power Supply 110-230VAC
6: Power cord
7: UC100  USB Connection

Wiring Diagram & Downloads

KL-5056DWiringC10 (17022)
Mach3 set up for kit and machine, Download here
Mach3 Setup (Mach3Mill.xml file) (14468)
Mach3setup (17670)
Mach3Tutorial (210785)
