EtherCAT NEMA 23 Motion Control System with Mach4

Product in stock

Price

$1,998.00

Loading Updating cart...

EtherCAT NEMA 23 Motion Control System with Mach4

Product Description

We worked with Newfangled Solutions and KINGSTAR, built this new CNC EtherCAT Motion Control System. It is fully Pre-wired, tested and configured with Computer. So you do not need any Breakout Board, Ethernet Board. You do not need to wire them anymore

Following Items are included:

-- 1 Pcs Rebuilt Computer with 19 inch Monitor: 8GB of RAM,  500 GB Hard Drive, Windows 10 Pro x64

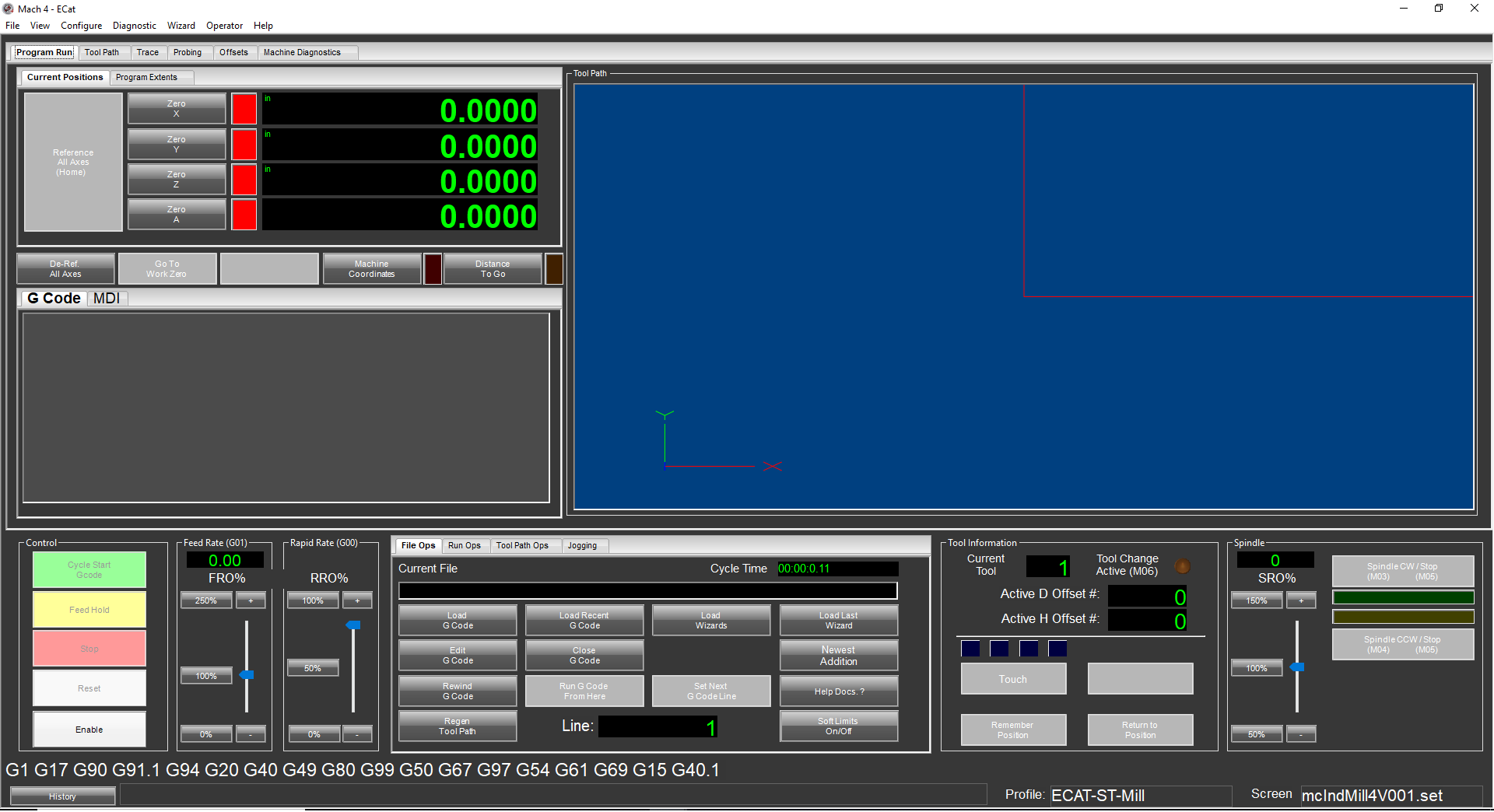

-- 1 Pcs Mach4 CNC EtherCAT Software, License is included

-- 1 Pcs Kingstar’s RTX64 Runtime License and KINGSTAR EtherCAT  License from KINGSTAR ( You do not need any Breakout Board, Ethernet board anymore)

--3 Pcs NEMA23 Stepper Motors (570 Oz-in) with 12 feet Cable, click the following link:

NEMA23 570oz/in 5A 1/4” Dual Shaft Stepper Motor (KL23H2100-50-4BMC) with Cable

-- 3 Pcs EtherCAT Stepper Driver, click the following link:

EtherCAT Stepper Drives, KL-8070E-C

-- 1 Pcs 48VDc 12.5A Power Supply, click the following link:

48VDC/12.5A Switching CNC Power Supply

-- 3 Pcs Proximity Switch with 1.5 Meter Cable, click the following link:

Inductive Proximity Switch,NPN

Inductive Proximity Switch,NPN

-- 1 Pcs E - Stop with 1.5 Meter Cable

Latch Twist-Release E-Stop Button

-- 1PCS 12Vdc Power Supply for the limit switch

Switching Power 12V/5A 110V/220VAC

We can configure 4 Axis, 5 Axis, 6 Axis ..... to N axis

We can change from 1.5-meter cable to other Length as you need

Wiring Diagram & Downloads


EtherCAT kits Wiring Diagram (508 downloads)

XML File for EM3E Series Driver (271 downloads)

Testing Video:
