G0704,BF20L,PM25MV Controller with Stepper Motor with USB (UC100) Connection

Product in stock

Price

$1,099.00

Loading Updating cart...

G0704,BF20L,PM25MV Controller with Stepper Motor with USB (UC100) Connection

Product Description

This Controller is G0704 or  BF20L , PM25MV

mill machines

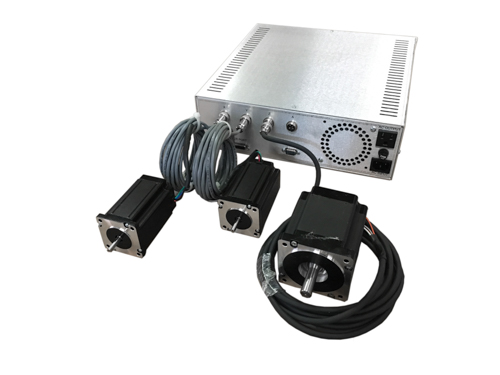

G0704,BF20L,PM25MV Controller with Stepper Motor with USB (UC100) Connection with 570 oz-in stepper motor

It is assembled and tested with Mach3 software. it will work for sure for your machine

Digital Stepper Control Box  and  X and Y NEMA23 Stepper Motor,

with USB UC100  Motion Control Board for Mach3, 6 axis

Included:

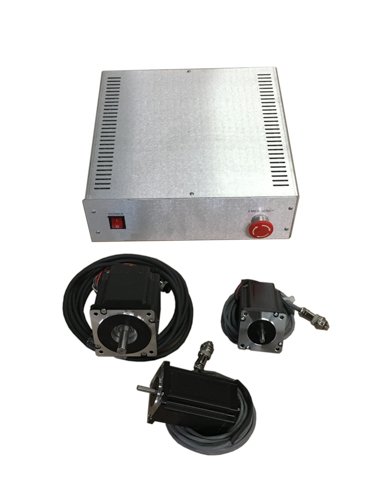

1: Controller Box:

Aluminum Box (up to 6 axis) (Aluminum Box without Connectors)

2: 2 PCS KL-5056E Bipolar Digital Stepper Drivers, 50V, 5.6A for X, Y Motors

KL-5056E Digital Stepper Driver

3: 1 PC KL-8070D Bipolar Digital Stepper Drivers, 80V, 7.0A for Z axis Motor / KL-8060E

KL-8070D Bipolar Digital Stepper Drivers

4: 1 PC 48V/12.5A Power Supply, 115V/230V

48V/12.5A Power Supply, 115V/230V

5: 1 pc CNC 6-Axis Interface Breakout Board with Relay and Spindle control

6-Axis Interface Breakout Board with Relay and Spindle control, KL-DB25-6

6: 1 pc Mach3 USB UC100 or PMDX USB board

Mach3 USB UC100 board

7: 1 PCS  Fan

110 VAC Box Fan

8: 1 pc 24V and  5V Power Supply 110-230VAC

24V 1A Switch Power Supply with 5V/2A

9: Power cord

10: X,Y Stepper Motors with Cable, NEMA23 570 oz-in, 5A, 3/8" Shaft, or 1/4" Shaft

3/8'' Shaft X, Y Stepper Motor

or

1/4'' Shaft X, Y Stepper Motor

11:  Z Stepper Motor, NEMA34 1200 oz-in, 6A, 1/2 inch shaft with 12 feet cable

NEMA34 Stepper Motor – 1200oz/in 6amp Single Shaft (KL34H2120-60-4AC ) with cable

One Year USA Parts Warranty

Check this video

CNC G0704 Part 2 - Assembling the Control Box

CNC G0704 Part 3 - Teardown

CNC G0704 Part 4 - Y Axis Installation

CNC G0704 Part 5 - X Axis Installation

CNC G0704 Part 6 - Z Axis & Done

Mach3 set up for the board, Download here

Breakoutboard Wiring and Mach3 Setup (1990 downloads)

Breakoutboard Wiring with VFD and Ethernet Board (1197 downloads)

Mach3 XML file (KL-DB25-6) (618 downloads)
