» Featured Products » CNC Spindles & VFDs » KL-3200ATC Automatic Tool Changer, 220VAC, 3200W (4.3HP), Max 18000 rpm

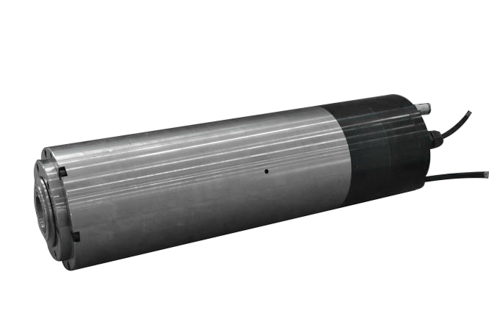

KL-3200ATC Automatic Tool Changer, 220VAC, 3200W (4.3HP), Max 18000 rpm
Product in stock
Price
$2,595.00
KL-3200ATC Automatic Tool Changer, 220VAC, 3200W (4.3HP), Max 18000 rpm
Product Description
KL-3200ATC Automatic Tool Changer:
Power: 3200W (4.3Hp)
Tool Holder: BT 30
Pull Stud: 45 Degree Angle
Diameter: 110mm
Length: 398.5mm
Max Speed: 18000rpm
Cooled: Distilled Water Cooled
Pneumatic controlled
Temperature control：22-25℃
Frequency: 600Hz
Voltage: 220V
Distilled Water cooling flow: 5L/min

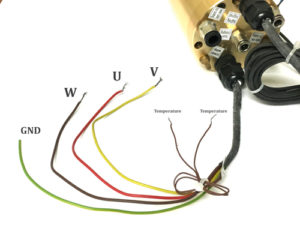

U- Red
V- Yellow
W- Brown
2x brown wires - Temp protector

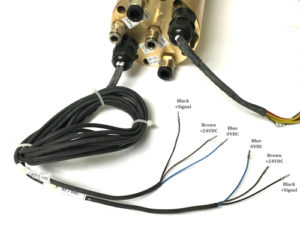

Loading Tool Sensor
Brown- +24VDC
Blue- 0VDC
Black- +Signal
Unloading Tool Sensor
Brown- +24VDC
Blue- 0VDC
Black- +Signal
Manuals & Downloads
ATC Spindle Air Connection (82 downloads)
ATC Spindle Operation Guide (101 downloads)
Recommend VFD for this spindle:
