800W 1HP CNC Milling Spindle, ER11 Chuck (KL-800), Water Cooling
Sale!

800W 1HP CNC Milling Spindle, ER11 Chuck (KL-800), Water Cooling

Product in stock

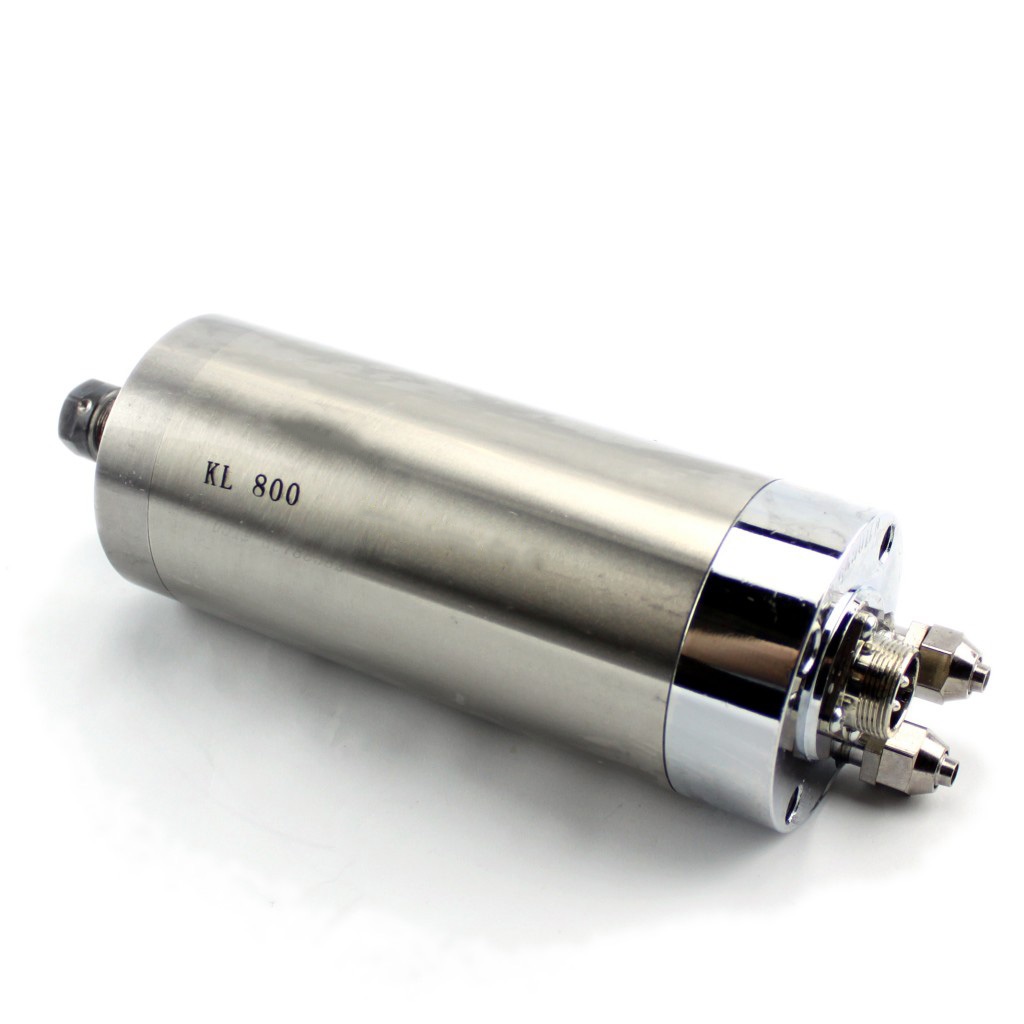

This water cooled 800 watt CNC spindle is small enough for light machines, but powerful enough to get the job done. With an 8000-24000 RPM range, ER11 collet chuck, and runout of less than0.005mm, the KL-800 spindle is ideal for PCB drilling, light routing, and other similar applications

Price

$139.00 $129.00

You save: $10.00! (7.19%)

Loading Updating cart...

800W 1HP CNC Milling Spindle, ER11 Chuck (KL-800), Water Cooling

Product Description

Setup is same as 2.2KW spindle:



Voltage 220V/ Current 5A
Speed 8000-24000R/min
Power 800W (1HP)
Frequency 400Hz
Cooling System Water Cooling (about 20-26gal/h)
Weight 9.5 lbs
OD 65mm
Length 160mm

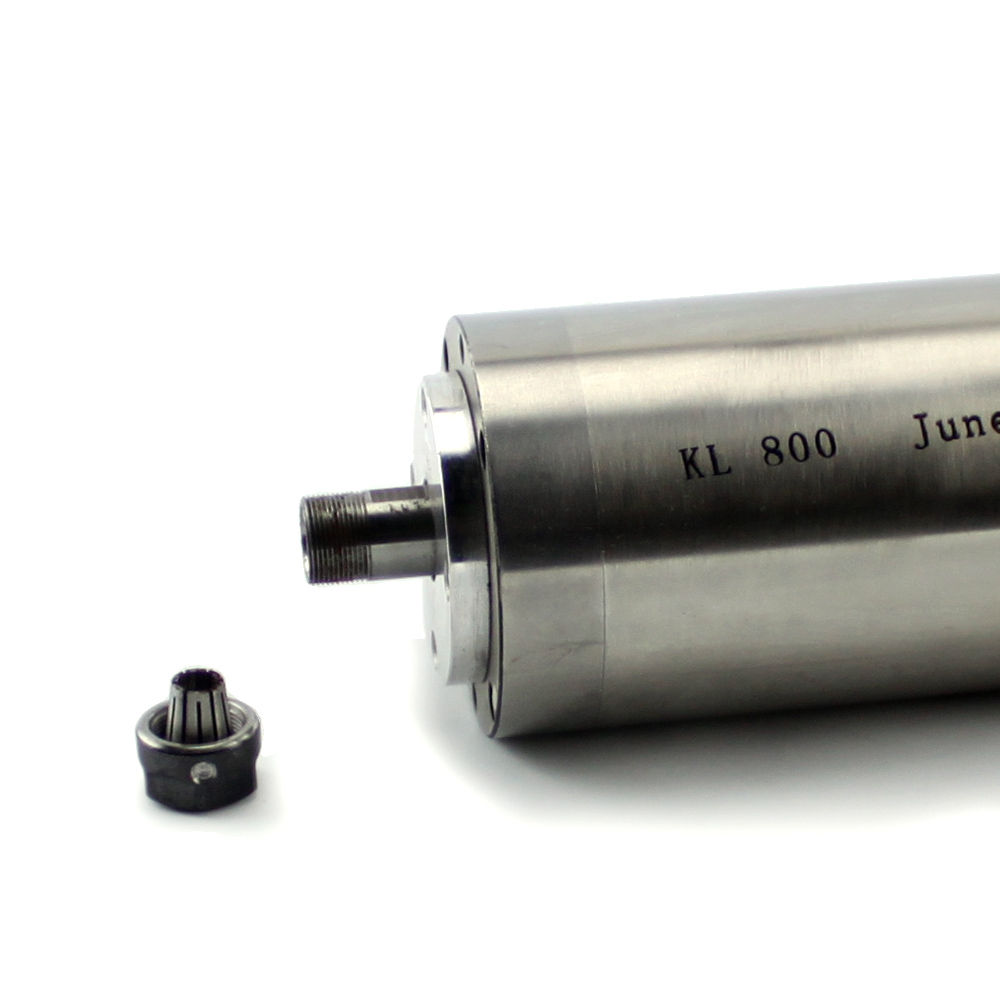

ER11 collect chuck,   4 Bearings
Grease Lubrication
Run out off: less than 0.005mm

Warranty:

  • We offer one year warranty.
  • Within the warranty period, if your item has any problems when you use it, please send us an e-mail with photos or video to show the problem.
  • The replacement of the products for free are considerable due to it's own defects during warranty period.

Attention:

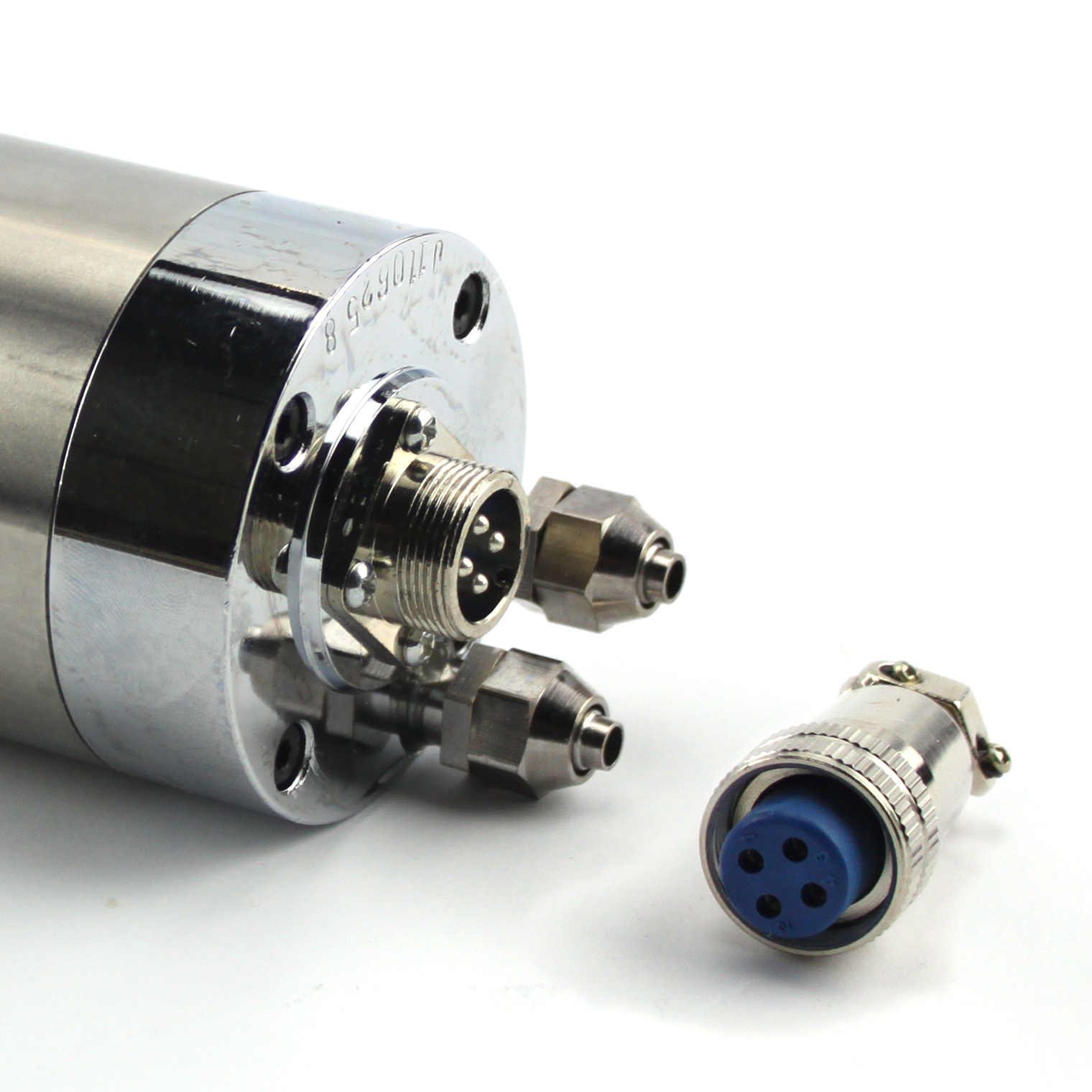

  • This spindle has a connector
  • Used for tool size 1/32'', 1/16'', 3/32'', 1/8'', 3/16'', 7/32'', 1/4''  (Tool is not included)

Drawing:

KL800 (3165 downloads)

Use this VFD:

1.5KW VFD Spindle Inverter (KL-VFD15), 220VAC input

You can use this water pump and tube for the spindle:

Water pump for spindle

PVC tube for spindle

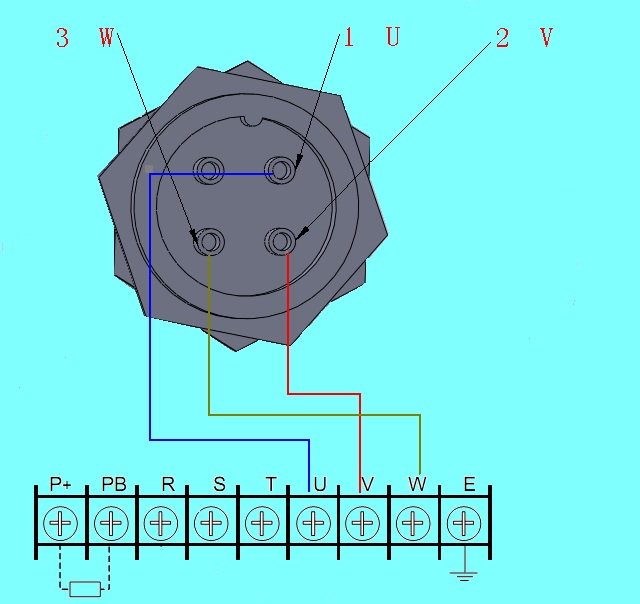

Connect to VFD:
