3 Phase 3DM580 8A Step Motor Driver

3 Phase 3DM580 8A Step Motor Driver

Product in stock


$64.00 $59.95

You save: $4.05! (6.33%)

Loading Updating cart...

3 Phase 3DM580 8A Step Motor Driver

Product Description

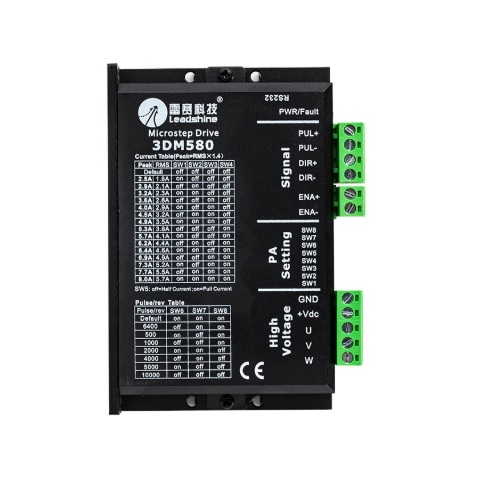

3 Phase 3DM580 8A Stepping Motor Driver

This is for Laser machine

Product description


Extra-low motor noise offers excellent quietness

Anti-Resonance, provides optimum torque and nulls mid-range instability

Self-test and Auto-configuration technology, offers optimum responses with different motors

Microstep resolutions programmable, from full-step to 10,000 steps/rev

Operating voltage up to +50 VDC

Output current programmable, from 2.5A to 8A

Pulse input frequency up to 500 KHz

Automatic idle-current reduction

Supports PUL/DIR and CW/CCW modes


*Current: Min 2.5A, Max 8A (peak current) - 15 settings

*Voltage: Min 18V Typical: 36V Max: 50V DC

*Logic current: Min 7mA Typical: 10mA Max: 16mA

* Input frequency: 0 to 500KHz

* Size: 118mm x 76mm x 34mm (4.7" x 3" x 1.4")

one year warranty

Stepper Motor for this driver in Laser machine

3 Phase Hybrid Step motor for NEMA23 212 oz-in KL23H378-49-3A


3DM580 User Manual (312 downloads)
