Product Description

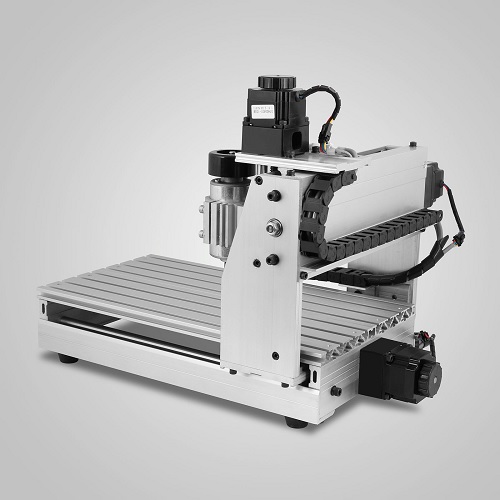

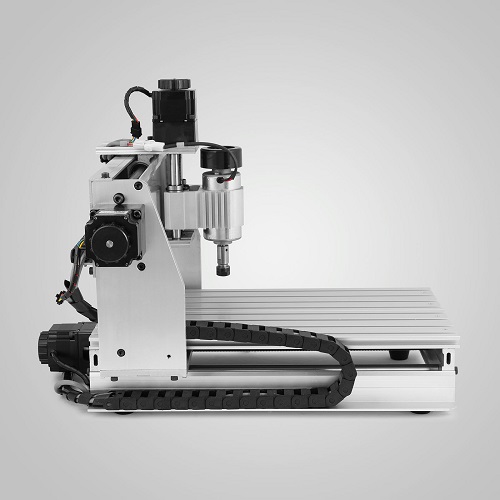

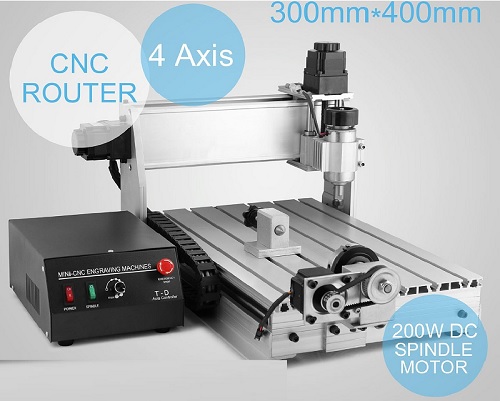

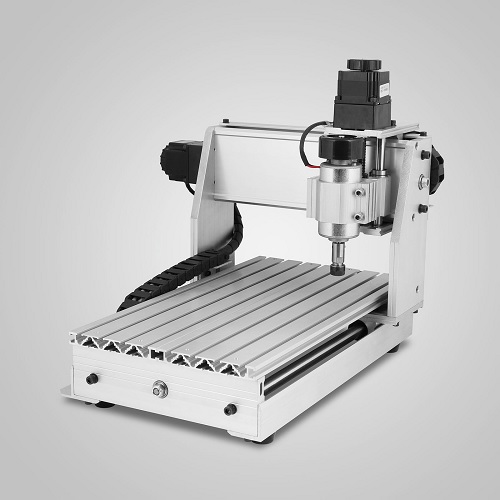

CNC Router Engraving Machine Engraver Machine 3040T 4 Axis Desktop Wood Carving Tools Artwork Milling Woodworking with Rotary Axis (3040T 4 Axis)

CNC3040 is a miniature version of mobile longmen structure of carving machine and suitable for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

1× New CNC 3040T 4 Axis   Engraving machine

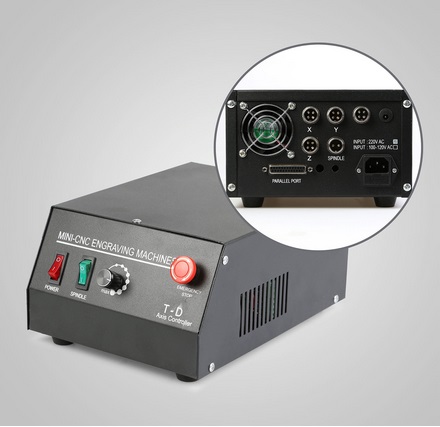

1× Control box with USB UC100 Connection,  Window 32 bit or 64 bits

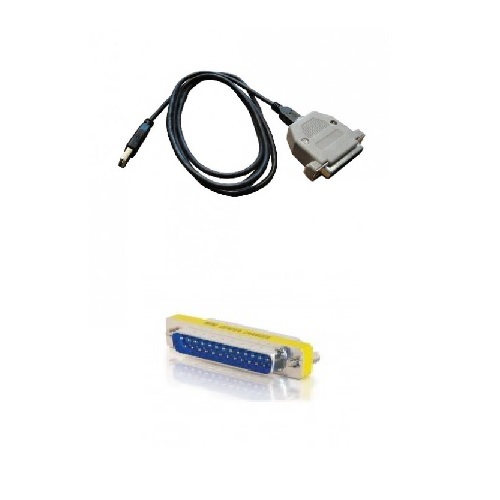

Mach3 USB UC100

if you need a mach3 software license , pls check here

• Mach3 software license

1× Power cable

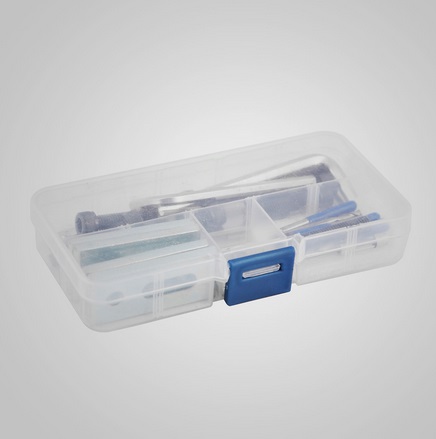

1× Tool box and tools

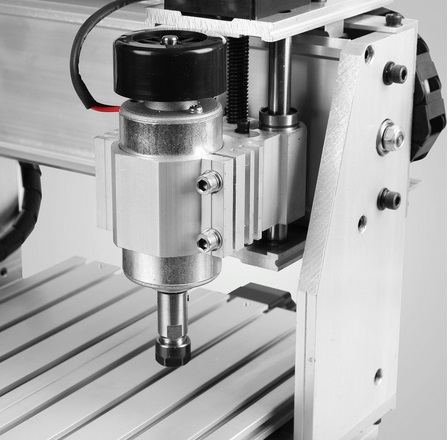

DC Hobby Spindle

Machine Specification;

Max. workpiece dimension:70mm

Work table dimension:320mm*530mm

Driving units X/Y/Z axis:1204 trapezoidal screws

Sliding units X axis:Dia.16 mm chrome plate shafts

Sliding units Yaxis:Dia.16mm chrome plate shafts

Sliding units Z axis:Dia.12mm chrome plate shafts

Frame materials: aluminum alloy 6063 and 6061

Stepping motor type:57 two-phase 1.8A

Spindle speed:500~8000PRM/Min

Principal axis collet:ER11 /3.175 mm

Repeat accuracy:0.05mm

Spindle precision:radial beat acuities 0.03 mm

Control unit: triaxial one-piece drive + ring variable power + PWM speed

Carving Instructions:G-code/.tab /.nc / .ncc/.txt

Communication interface: through parallel connection with computer

Software environment:Windows 2000 / xp, 8, home, 10, 32/64 bit

Maximum speed:0-4000mm/min

Carving speed:300-2500mm/min

Package List:

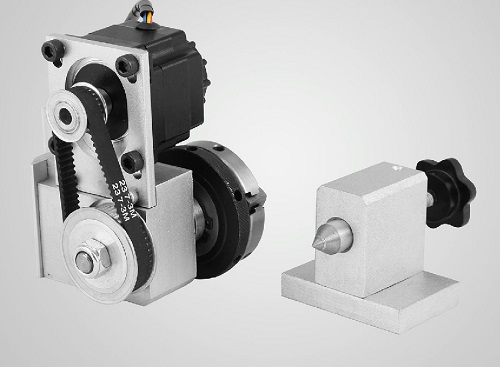

1× Engraving machine; 1× Control box; 1× Parallel cable; 1× Power cable; 1× Tool box and tools; 3× Axis motors; 1pcs rotary axis and tailstock and UC100 mach3 usb connection
