NEW-Carve CNC

Product in stock

Price

$1,439.00

Loading Updating cart...

NEW-Carve CNC

Product Description

Kits Dimension:

base kit 500

750(+$100.00)

1000(+$200.00)

1045(+$465.00)

4545(+$935.00)

Spindle Mount(Optional, Recommended for extra short tooling ):

65mm(Makita RT0701C)(+$75.00)

69mm(Deawalt 611)(+$75.00)

80mm(+$99.00)

269oz-in stepper (Optional)

4 x 269oz-in (+$160.00)

Wiring kit (Optional)

New-Carve 500/750/1000 (+$75.00)

New-Carve 1045/4545 (+$80.00)

Specifications:

-4.5" clearence under X carriage

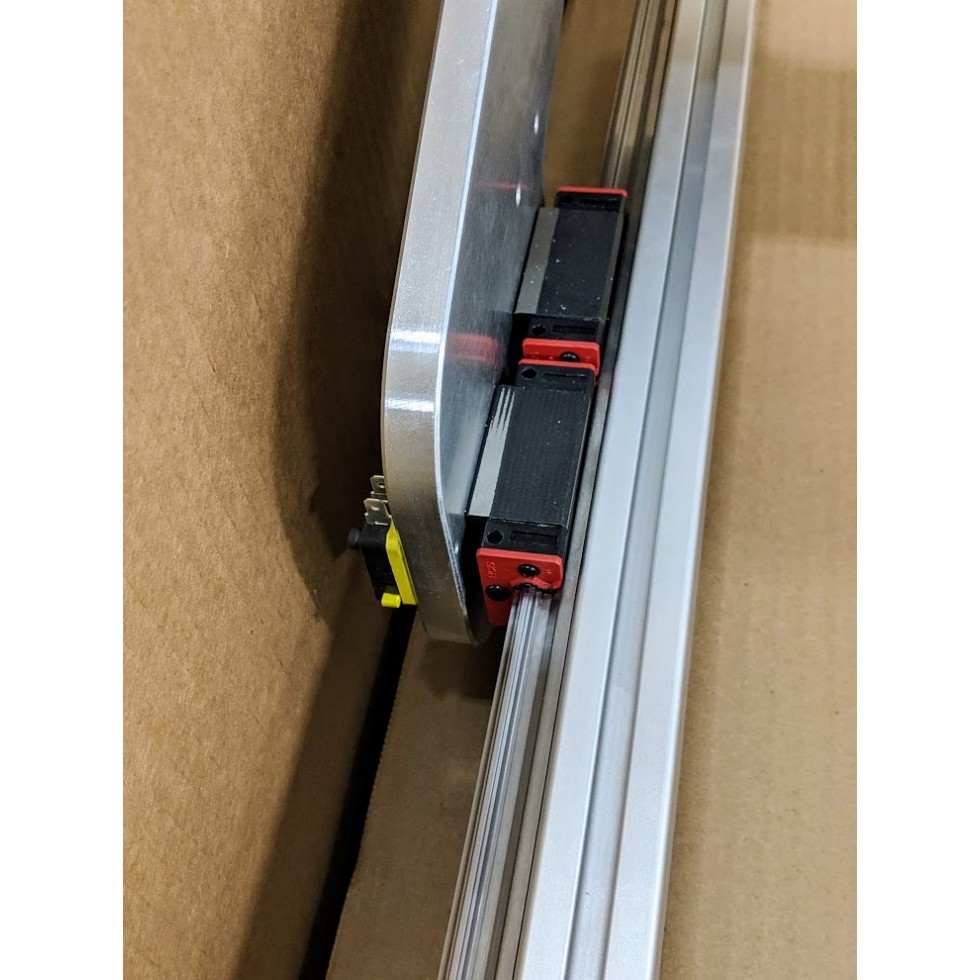

-15mm square linear bearings on X and Y axis

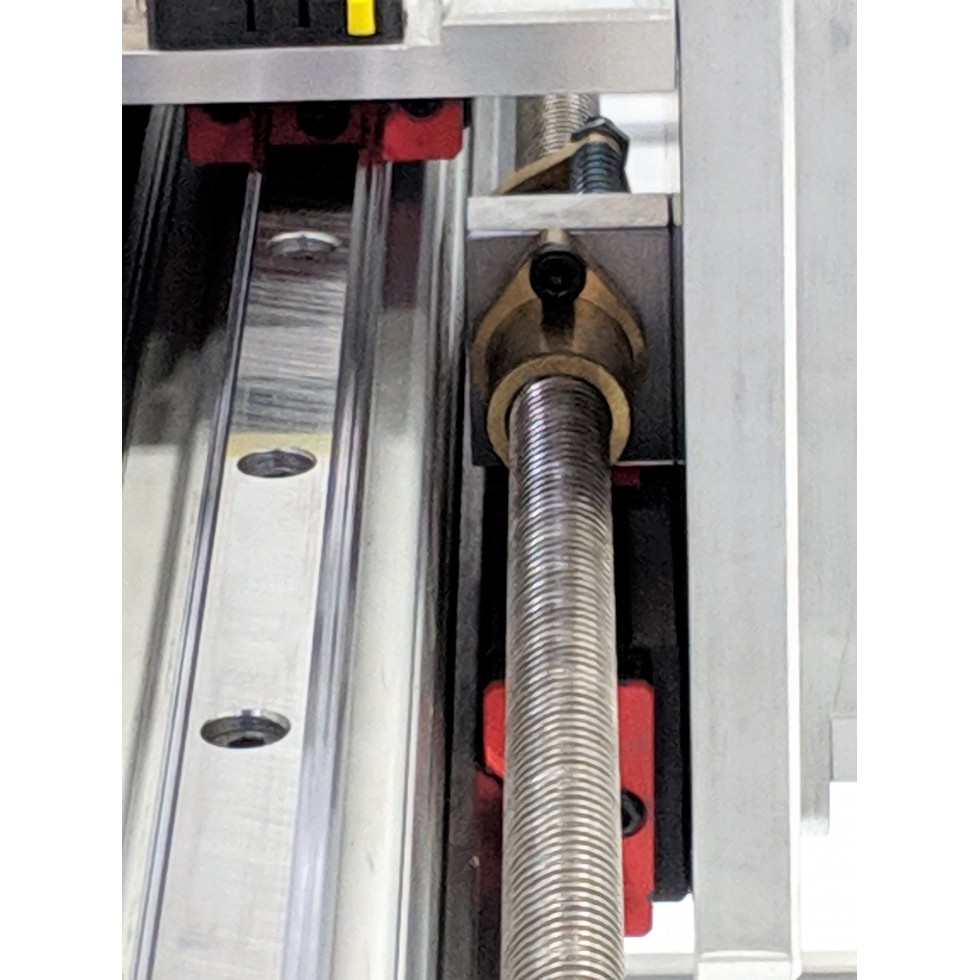

-12mm diameter precision leadscrews on X and Y

-All brass anti-backlash nuts and they are adjustable for a long life

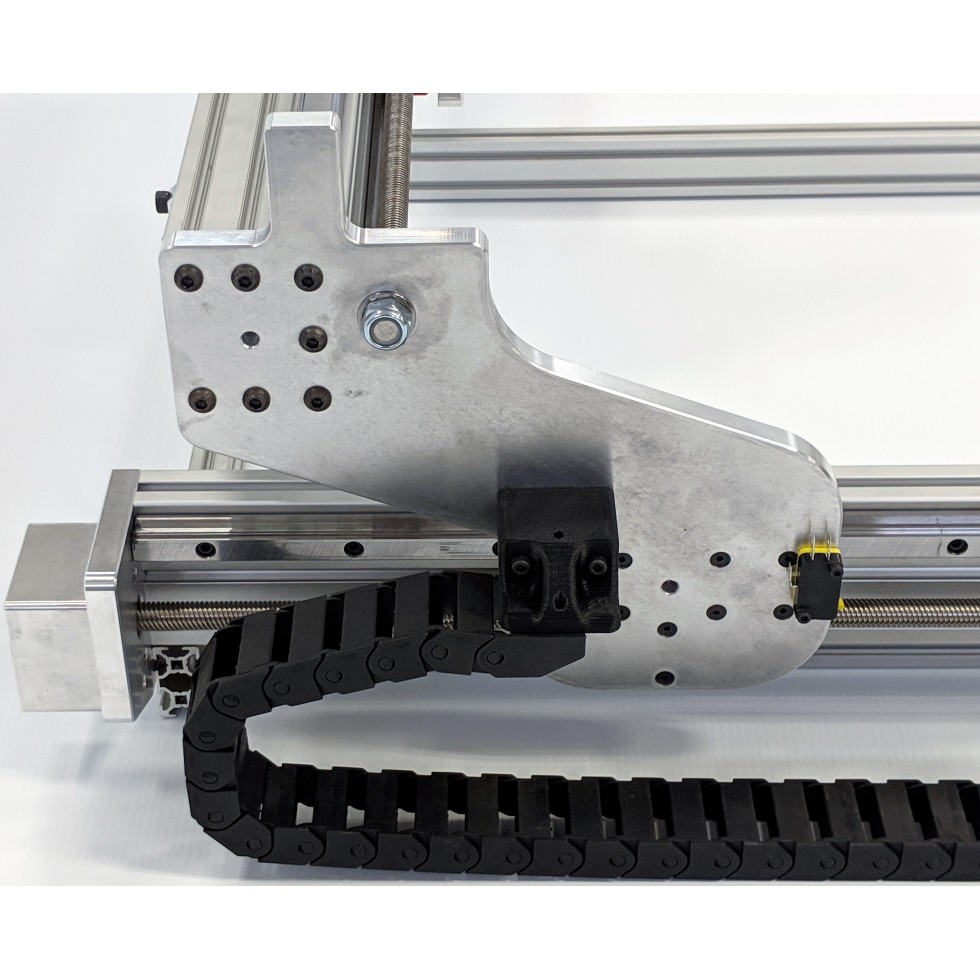

-All plates from 1/2" thick 6061T6 aluminum,  precision machined

-C-beam X axis 3" x 2.5"

-1" x 3" real American extrusion Y axis

-Rigid motors mount made from 6061T6 aluminum,  not a printed parts!

-Direct drive leadscrews, no slipping belts!

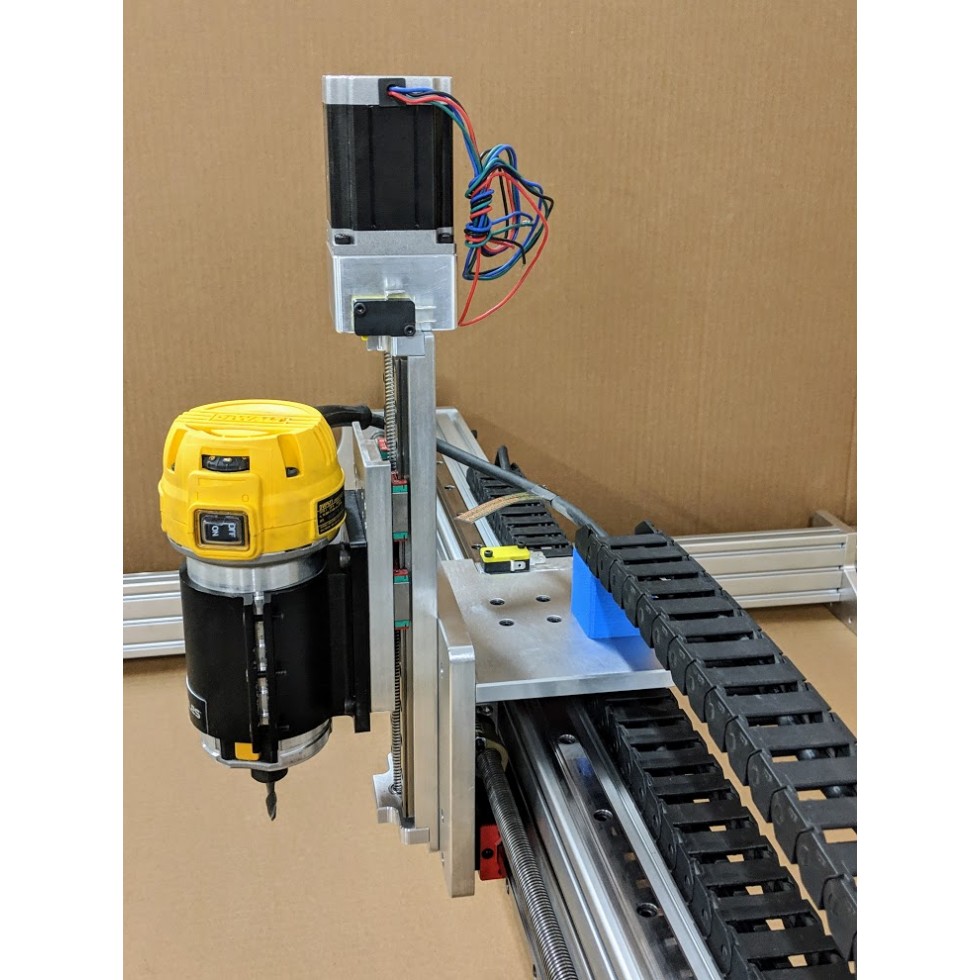

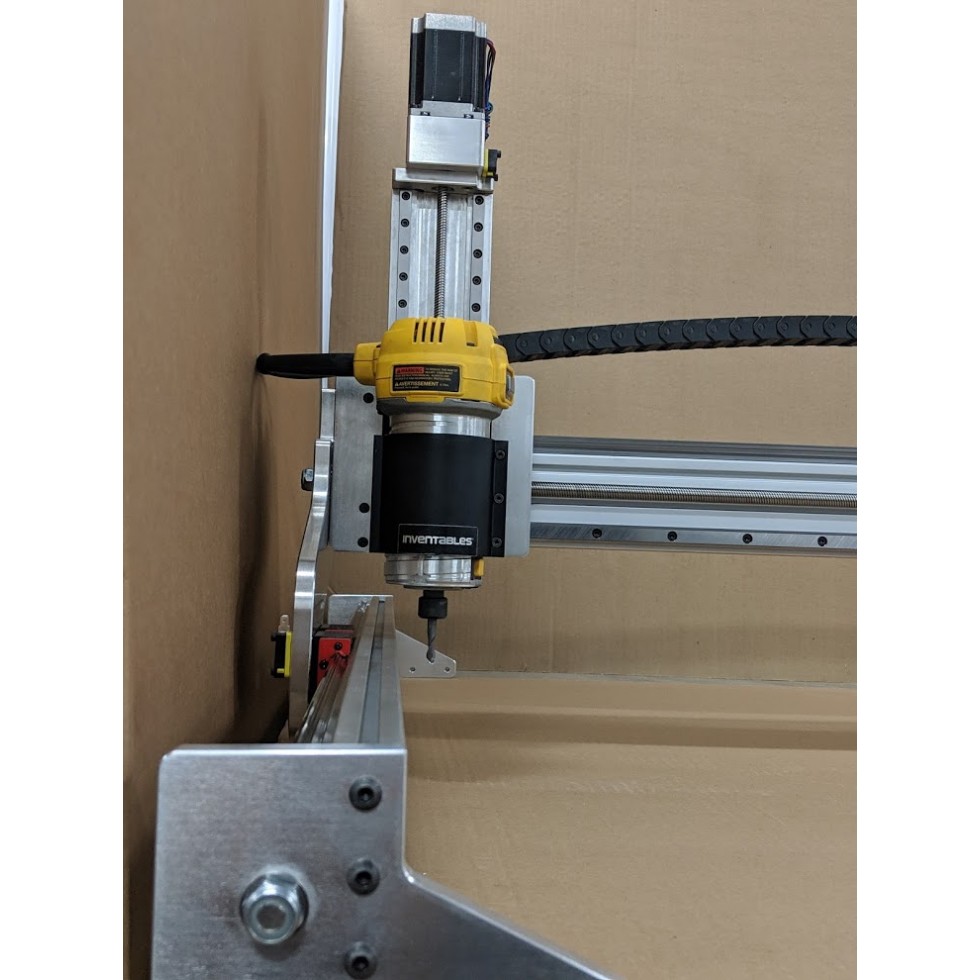

-6" wide front plate for a large range of spindle mount

-Now you can easily mount an industrial spindle like a 2.2Kw

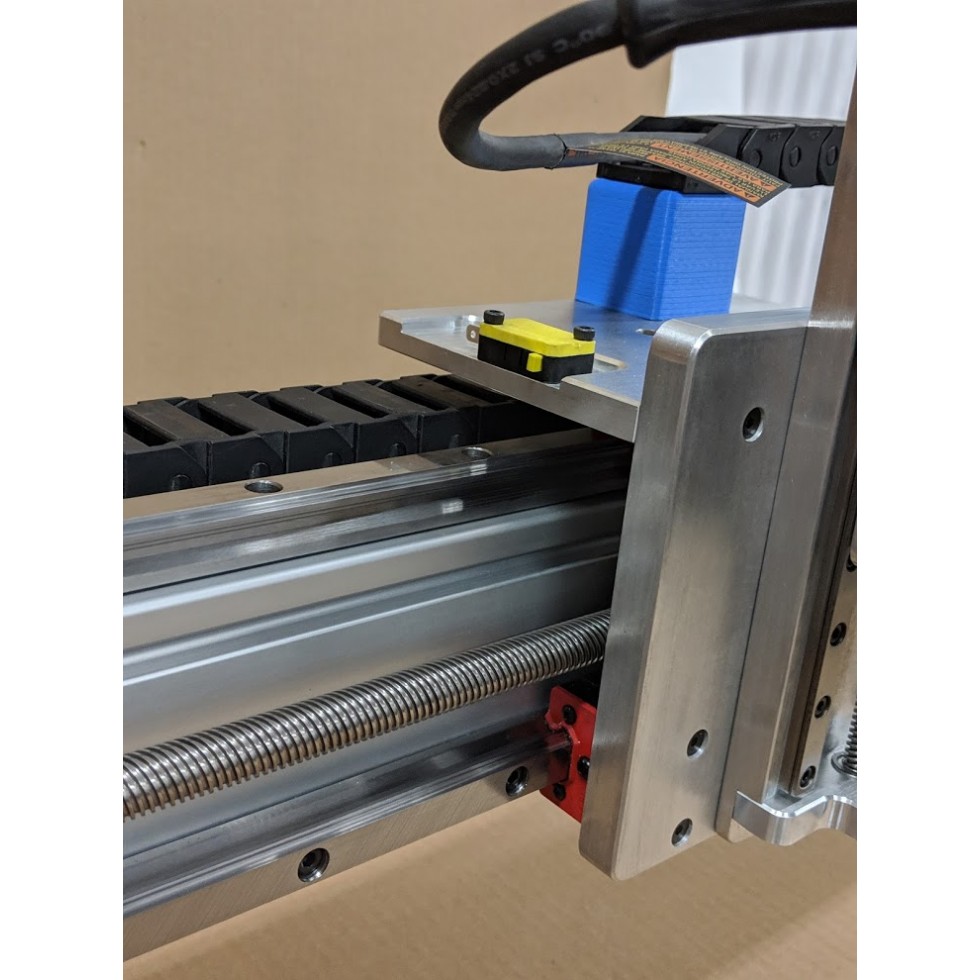

-Heavy Duty home switches included

-X and Y cables chains included

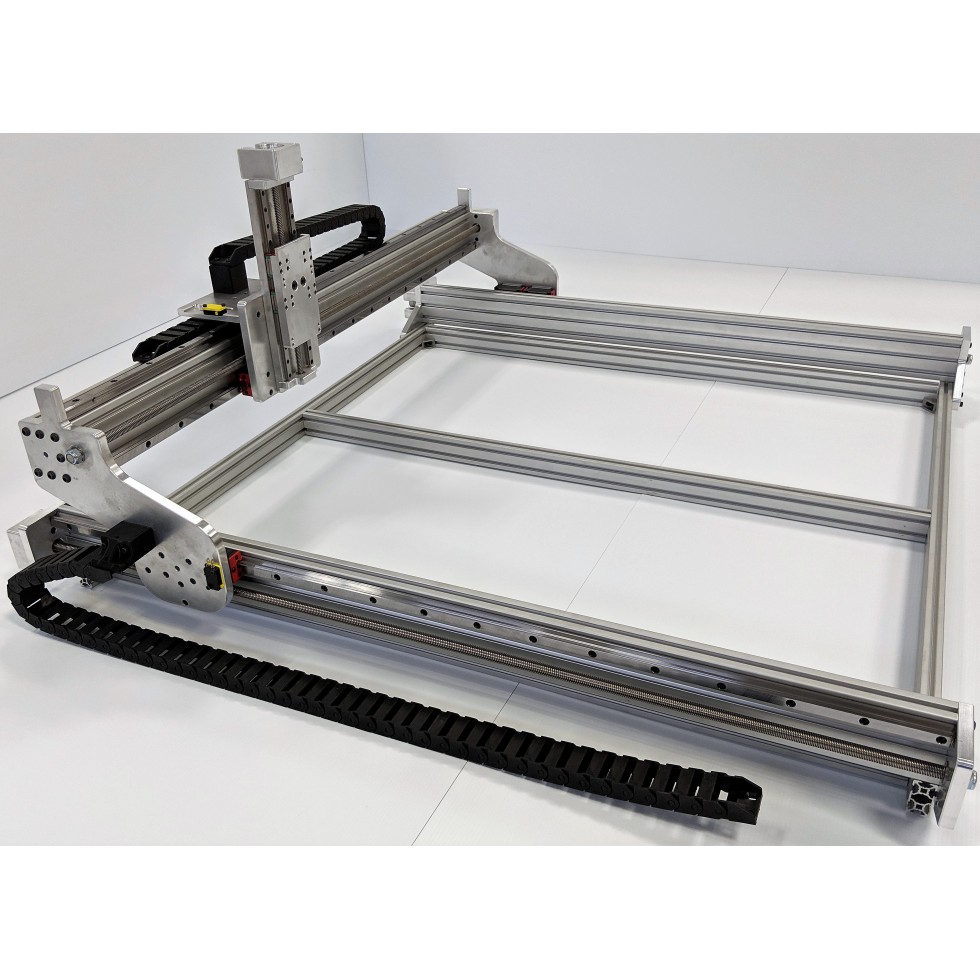

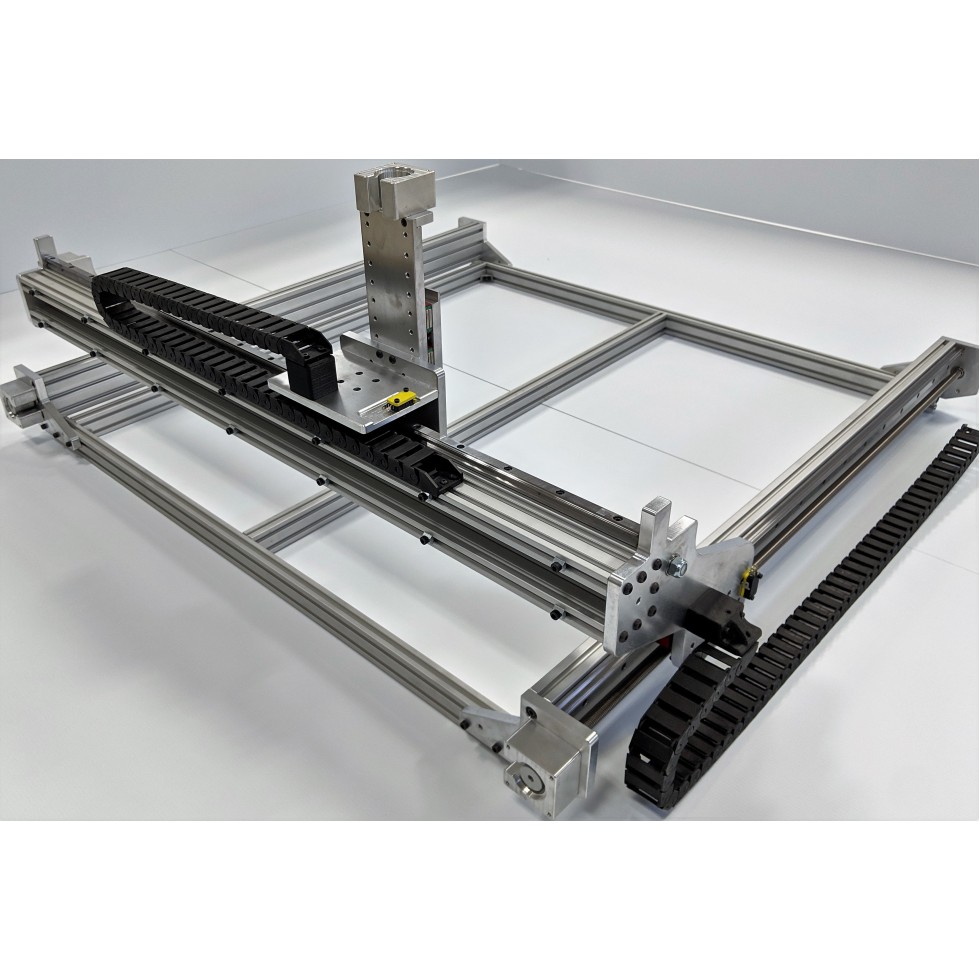

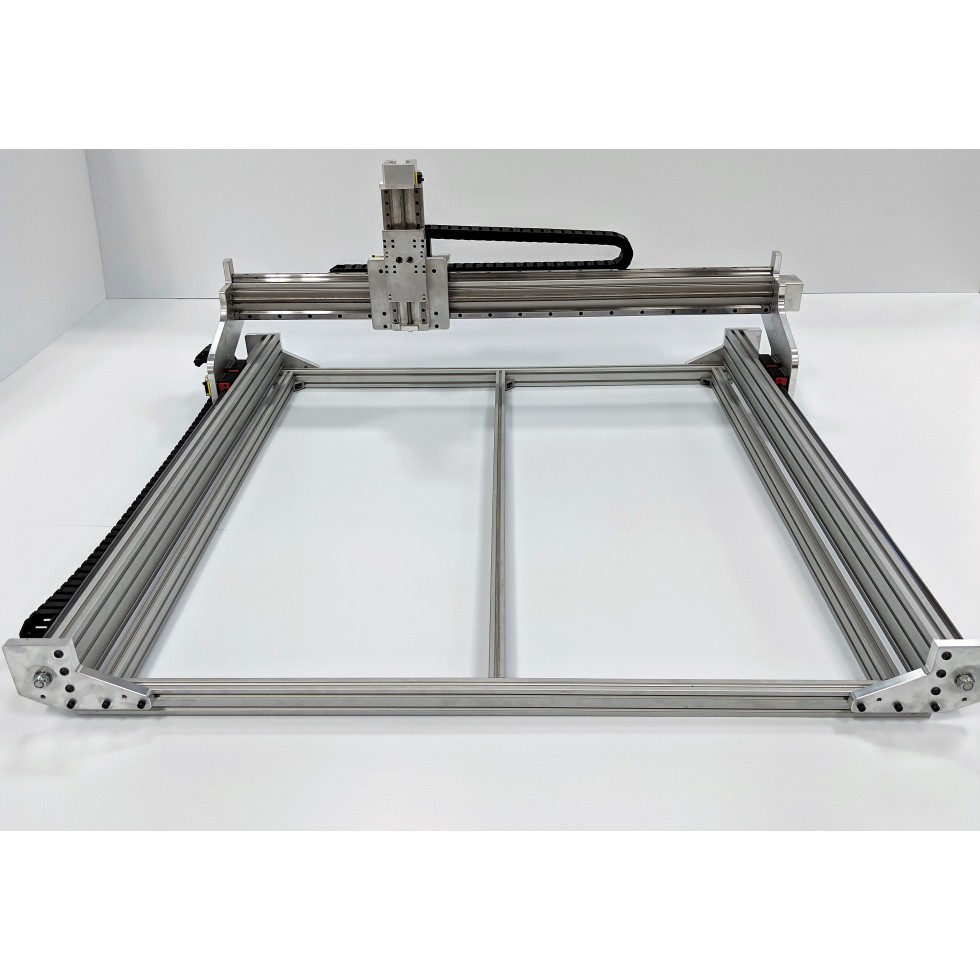

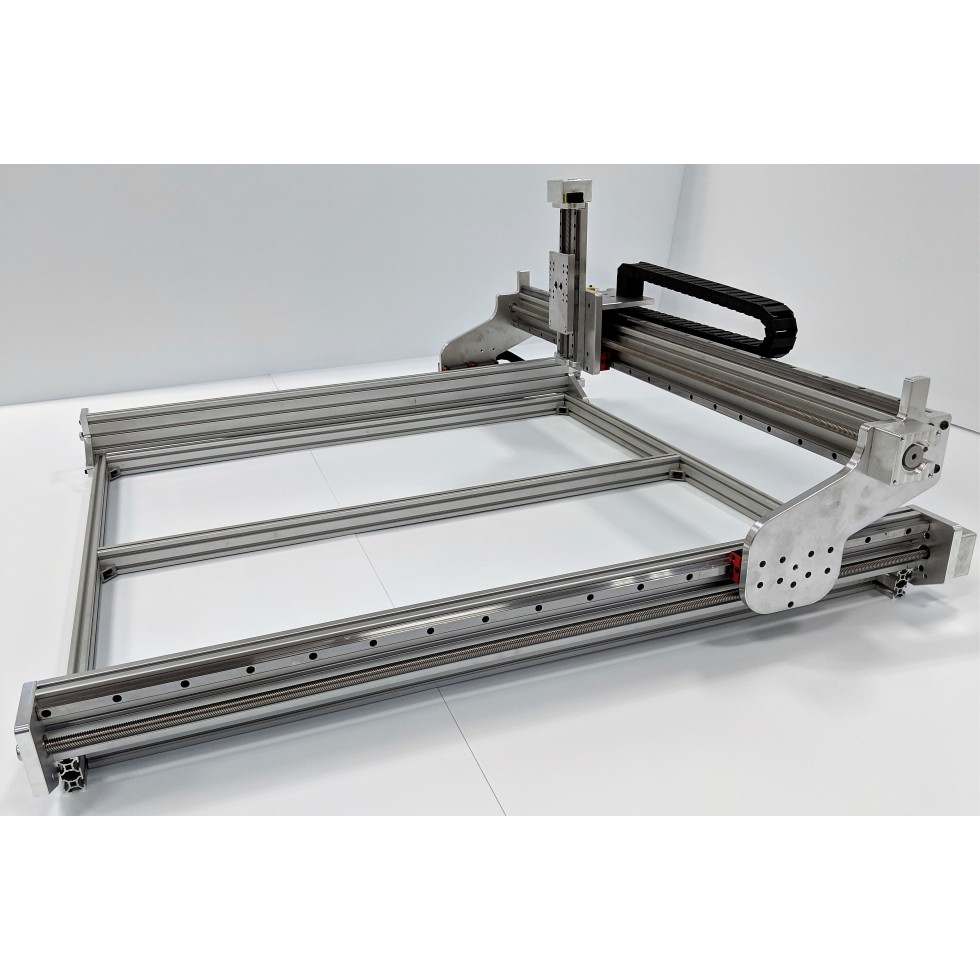

-Base frame made from 2040 aluminum extrusion *You need to provided the MDF waste boar

Included:

-2x Y axis assemblies

-1x X axis assembly

-1x Z axis

-4x Flexibles couplings for 1/4" diameter shaft

-X, Y and Z Heavy Duty home swithes

-X and Y cables chains

-Base frame

-All needed fastners

Not included:

-MDF waste board, we provide the drawing

-Electronics, wirrings ... , you can use any GRBL based controller or a more HD like the GECKO540

-Motors,  **269oz-in motors option available**

-Software, you use your prefered software like UGS, Mach3 ...

-Spindle and spindle mount


One Year Parts Warranty
