EtherCAT NEMA 23 Motion Control System with Mach4
Product Description

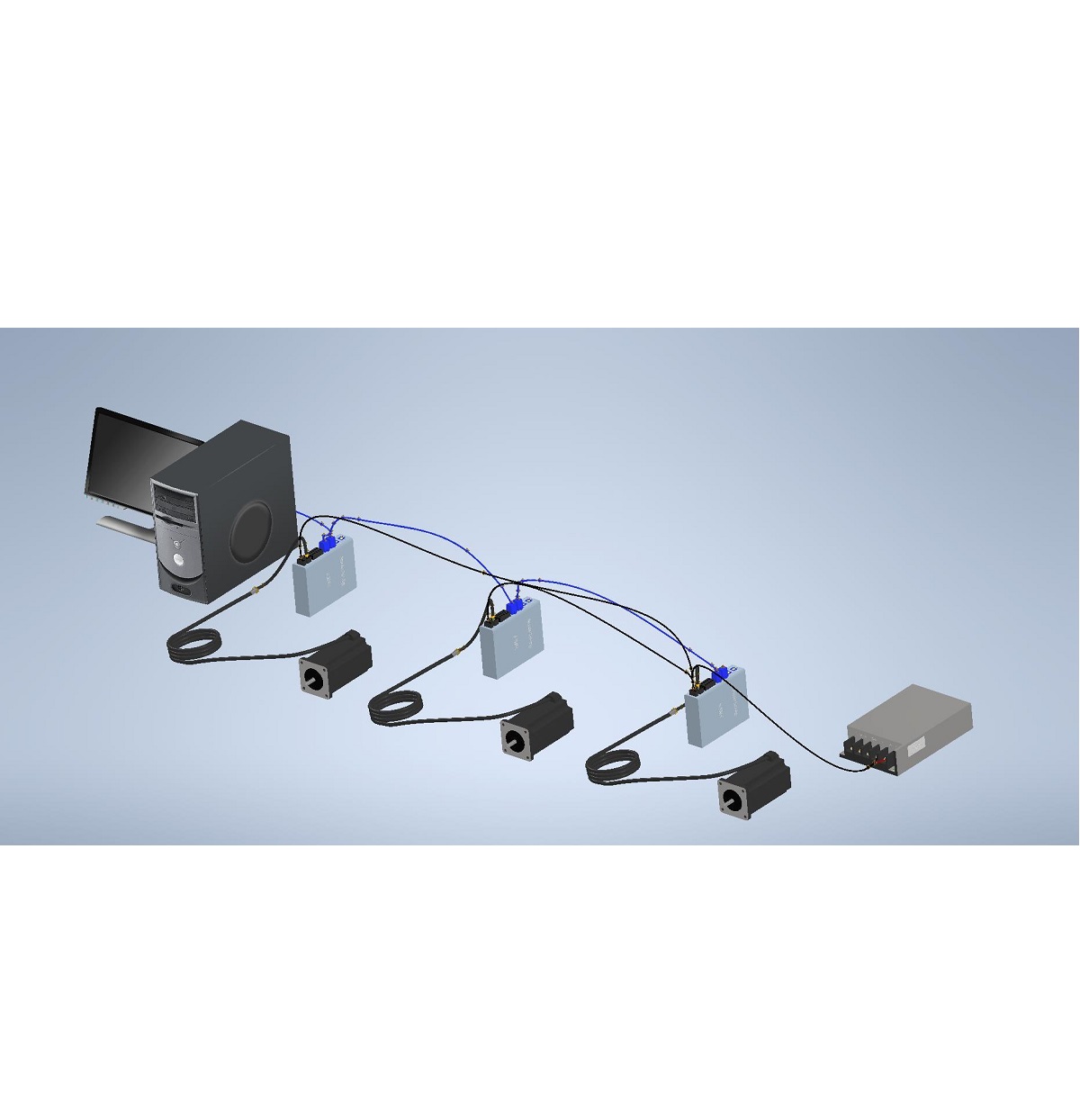

We worked with Newfangled Solutions and KINGSTAR, built this new CNC EtherCAT Motion Control System. It is fully Pre-wired, tested and configured with Computer. So you do not need any Breakout Board, Ethernet Board. You do not need to wire them anymore
Following Items are included:
-- 1 Pcs Rebuilt Computer with 19 inch Monitor: 8GB of RAM, 500 GB Hard Drive, Windows 10 Pro x64
-- 1 Pcs Mach4 CNC EtherCAT Software, License is included
-- 1 Pcs Kingstar’s RTX64 Runtime License and KINGSTAR EtherCAT License from KINGSTAR ( You do not need any Breakout Board, Ethernet board anymore)
--3 Pcs NEMA23 Stepper Motors (570 Oz-in) with 12 feet Cable, click the following link:
NEMA23 570oz/in 5A 1/4” Dual Shaft Stepper Motor (KL23H2100-50-4BMC) with Cable
-- 3 Pcs EtherCAT Stepper Driver, click the following link:
EtherCAT Stepper Drives, KL-8070E-C
-- 1 Pcs 48VDc 12.5A Power Supply, click the following link:
48VDC/12.5A Switching CNC Power Supply
-- 3 Pcs Proximity Switch with 1.5 Meter Cable, click the following link:
Inductive Proximity Switch,NPN
Inductive Proximity Switch,NPN
-- 1 Pcs E - Stop with 1.5 Meter Cable
Latch Twist-Release E-Stop Button
-- 1PCS 12Vdc Power Supply for the limit switch
Switching Power 12V/5A 110V/220VAC
We can configure 4 Axis, 5 Axis, 6 Axis ..... to N axis
We can change from 1.5-meter cable to other Length as you need
Wiring Diagram & Downloads

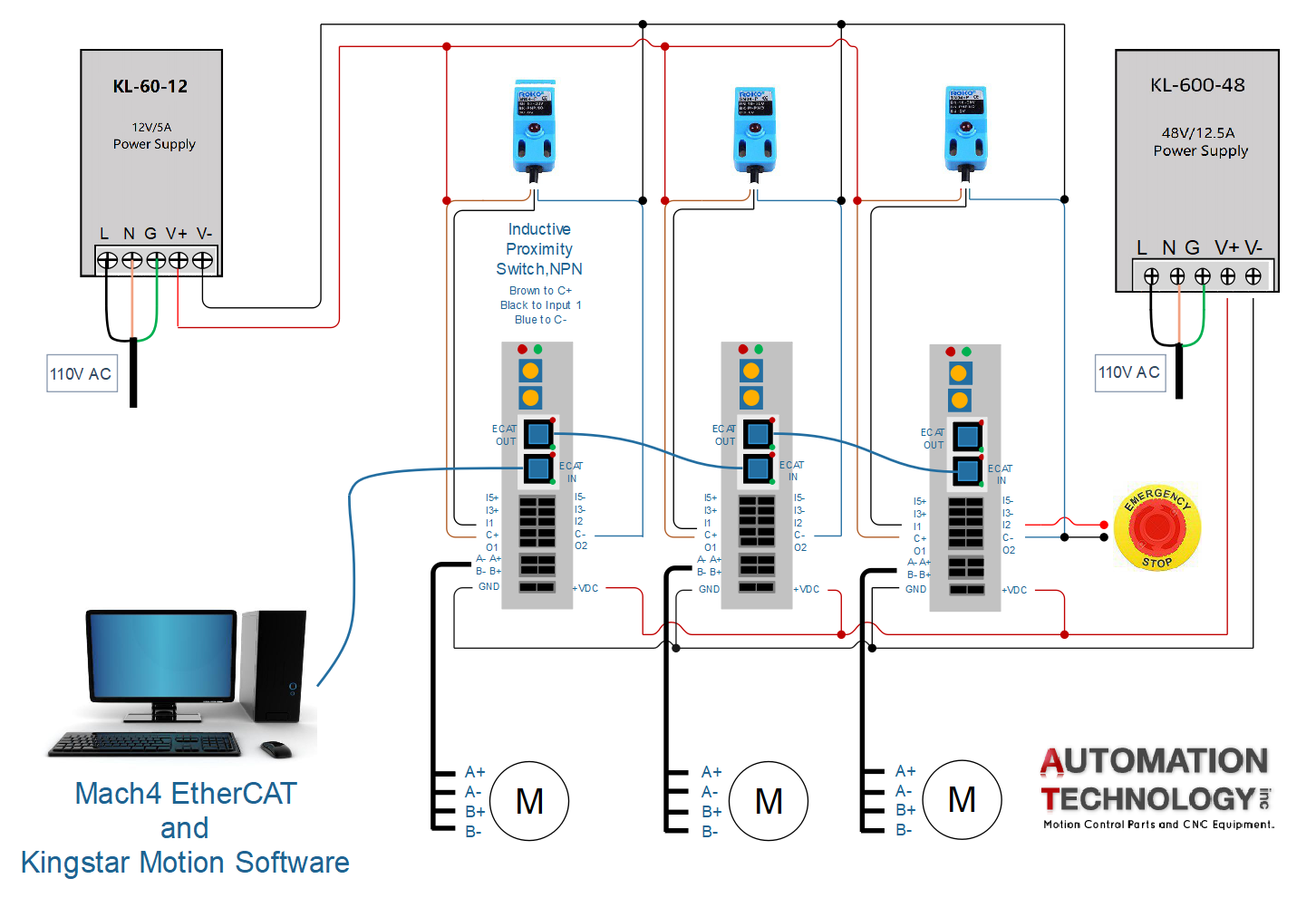

EtherCAT kits Wiring Diagram (529 downloads)
XML File for EM3E Series Driver (291 downloads)
Testing Video:
