G0704, BF20L, PM25MV Controller with Stepper Motors with Ethernet Connection

Product in stock

Price

$1,399.00

Loading Updating cart...

G0704, BF20L, PM25MV Controller with Stepper Motors with Ethernet Connection

Product Description


This Controller is for G0704 or  BF20L or PM25MV, X3 Machine

mill machines

It is assembled and tested with Mach3 software. it will work for sure for your machine

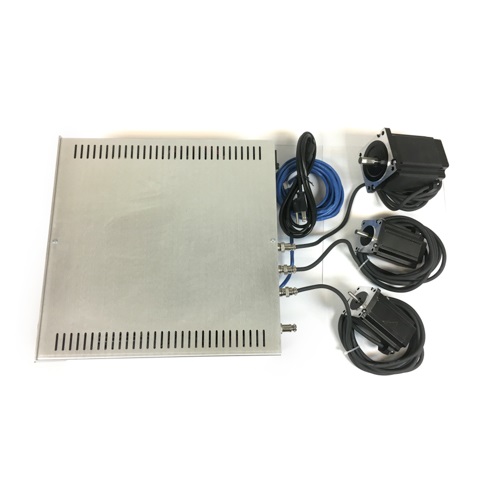

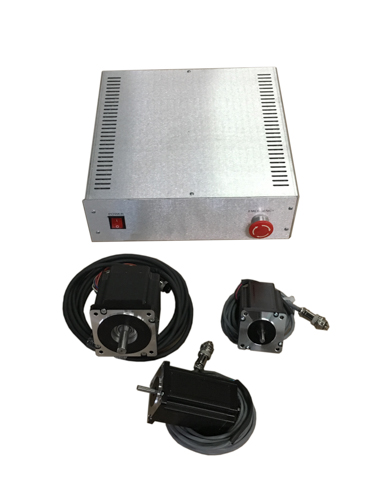

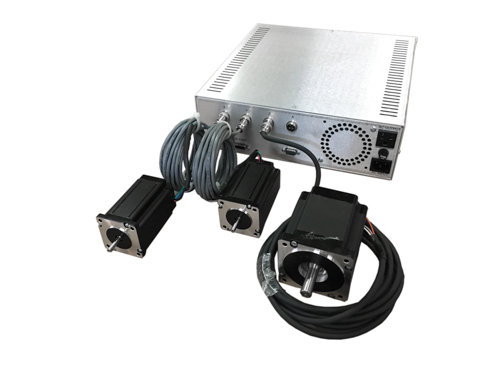

Digital Stepper Control Box  and  X and Y , Z  Stepper Motor.

1: Controller Box:

Aluminum Box (up to 6 axis) (Aluminum Box without Connectors)

2: 2 PCS KL-5056E Bipolar Digital Stepper Drivers, 50V, 5.6A for X, Y Motors

KL-5056E Digital Stepper Driver:

3: 1 PCS KL-8070D Bipolar Digital Stepper Drivers, 80V, 7.0A for Z axis Motor / KL-8060E

KL-8070D Bipolar Digital Stepper Drivers

4: 1 PCS 48V/12.5A Power Supply, 115V/230V

48V/12.5A Power Supply, 115V/230V

5: 1pc CNC 6-Axis Interface Breakout Board with Relay and Spindle control

6-Axis Interface Breakout Board with Relay and Spindle control, KL-DB25-6

6: Ethernet Board:

Mach3 or Mach4 Ethernet board

7: 1 PCS  Fan

110 VAC Box Fan

8: 1pcs 24V and  5V Power Supply 110-230VAC

24V 1A Switch Power Supply with 5V/2A

9: Power cord

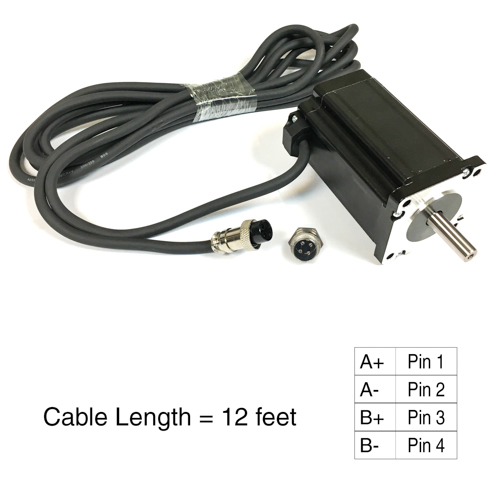

10: X,Y Stepper Motors, 570 oz-in, 5A, 3/8" Shaft, or 1/4" Shaft

3/8'' Shaft X, Y Stepper Motor

or

1/4'' Shaft X, Y Stepper Motor

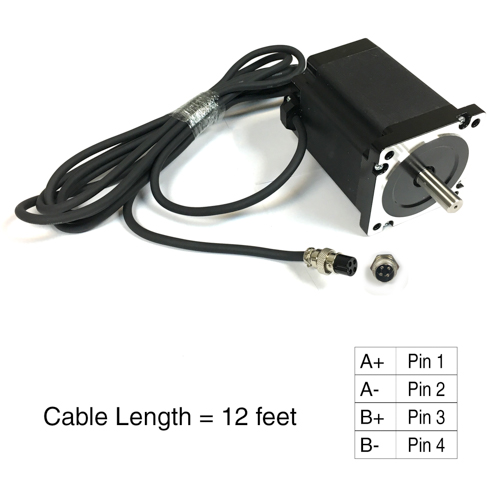

11:  Z Stepper Motor, 1200 oz-in, 6A, 1/2 inch shaft with 12 feet cable

NEMA34 Stepper Motor – 1200oz/in 6amp Single Shaft (KL34H2120-60-4AC ) with cable

Wiring Diagram

G0704 CNC kits Wiring Diagram (415 downloads)

Spindle Setup

Spindle Control C11G+ESS+G0704 (665 downloads)

Mach3 File

Mach3 XML file (KL-DB25-6) (501 downloads)

One Year Warranty

Pls see the following video:

CNC G0704 Part 2 - Assembling the Control Box

CNC G0704 Part 3 - Teardown

CNC G0704 Part 4 - Y Axis Installation

CNC G0704 Part 5 - X Axis Installation

CNC G0704 Part 6 - Z Axis & Done
