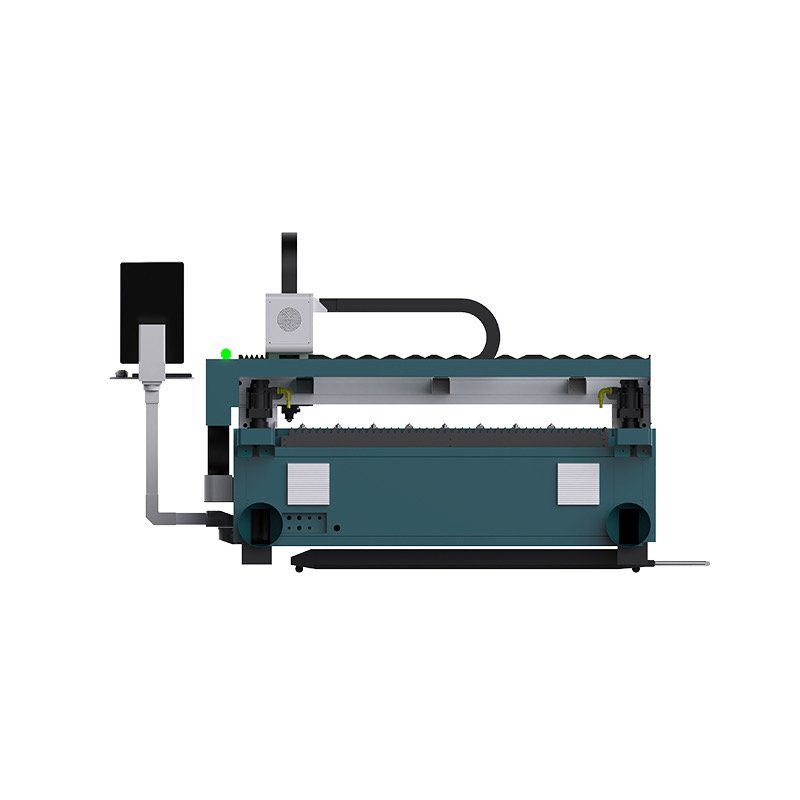

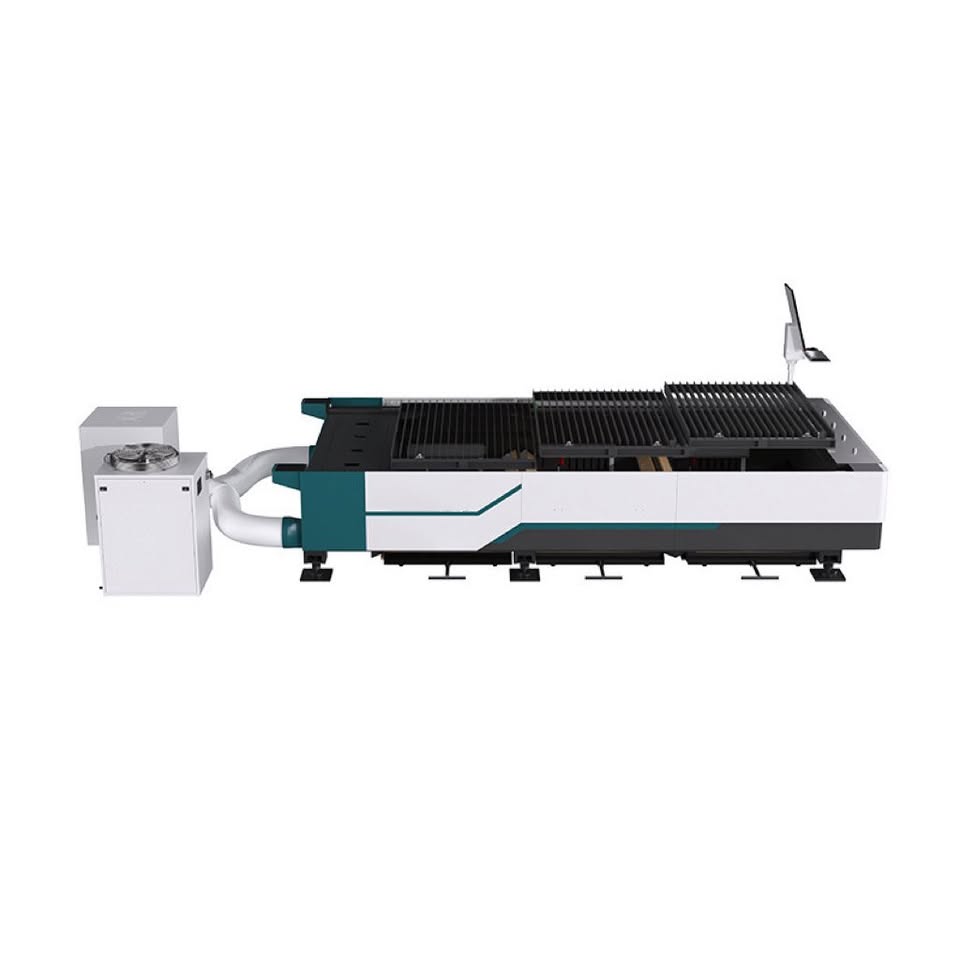

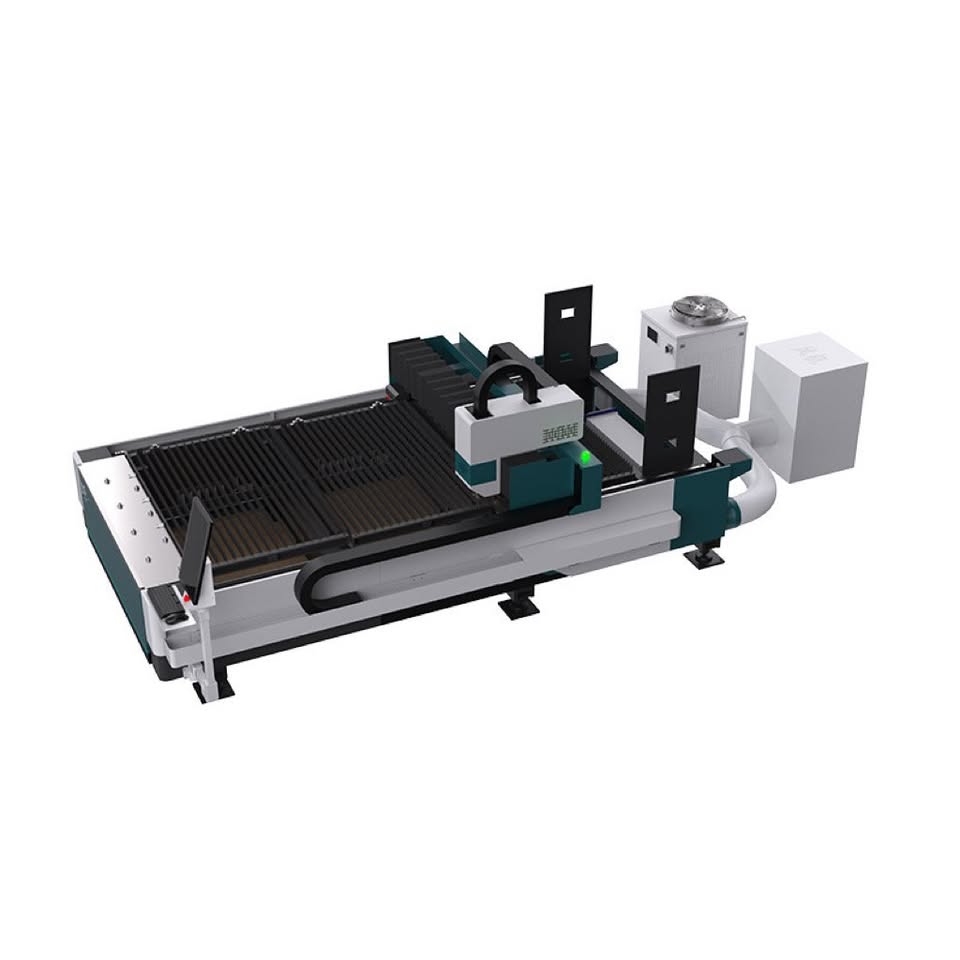

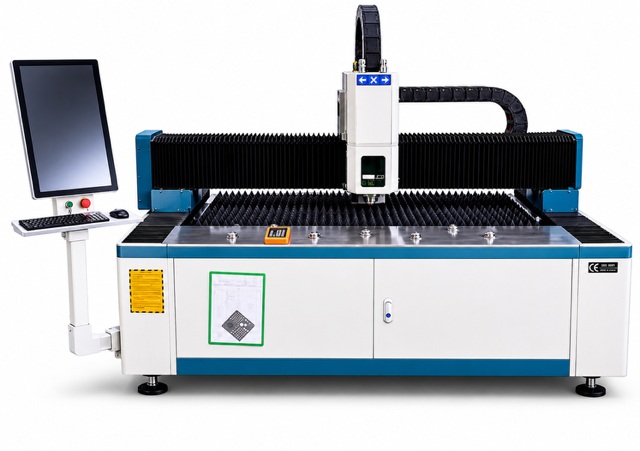

Fiber Laser Cutting Machine 3000W
Price
Fiber Laser Cutting Machine 3000W
Product Description
This machine is in Chicago warehouse now CALL US 8479840882
We can setup and run the machine before you pick up or ship to your address
We can offer you training too
Cutting material and thickness
| Material | 1000w | 1500w | 2000w | 3000w |
| Carbon steel（mm） | 0.4-12 | 0.4-16 | 0.4-18 | 0.4-20 |
| Stainless steel（mm） | 0.4-5 | 0.4-6 | 0.4-8 | 0.4-12 |
| Brass （mm） | 0.4-3 | 0.4-5 | 0.4-6 | 0.4-8 |
| Aluminum （mm） | 0.4-3 | 0.4-6 | 0.4-8 | 0.4-10 |
Working Area: 5 x 10 feet
Control System: CypCut E, BoChu FSCUT2000E controller
Industrial Computer: Windows 11
Max Laser Generator 3000W
Laser Head from Bochu
Driving System: Leadshine 750W Servo Motors for X, Y, 400W for Z
Dimension Tolerance: 0.05mm
Positioning Tolerance: 0.02mm
High Quality Rack and Pinion Guide Rails
Italy MOTOVARIO Gear Reducer
Cooling System: Water chiller Hanli 60HZ 2KW
Transformer 220v 3ph - 380 3ph 40kva
Stabilizer ( Or Regulator) 380VAC 50kva
Air-Assist: Oxygen or Nitrogen
Nitrogen proportional valve and Oxygen proportional valve
Machine Power Supply: Three Phase 220 V
Power Consumption: 15-20 kW
Gross Weight: 3000 ibs
Cutting nozzle: 30 pcs
Protective lens: 25pcs
Ceramic ring : 5 pcs
Dedicated USA technical support from qualified technicians and engineers
Warranty: One Year Parts
Additional Details
Updating...
