» Featured Products » Close Loop Stepper Motor System-Hybrid Servo Kit » NEMA23 Close Loop Stepper Motor System-Hybrid Servo Kit » NEMA 23 Closed Loop Stepper Motor System-Hybrid Servo Kit, 425 oz-in,Shaft size: 1/4"

NEMA 23 Closed Loop Stepper Motor System-Hybrid Servo Kit, 425 oz-in,Shaft size: 1/4″

Product in stock

Price

$187.98

Loading Updating cart...

NEMA 23 Closed Loop Stepper Motor System-Hybrid Servo Kit, 425 oz-in,Shaft size: 1/4″

Product Description

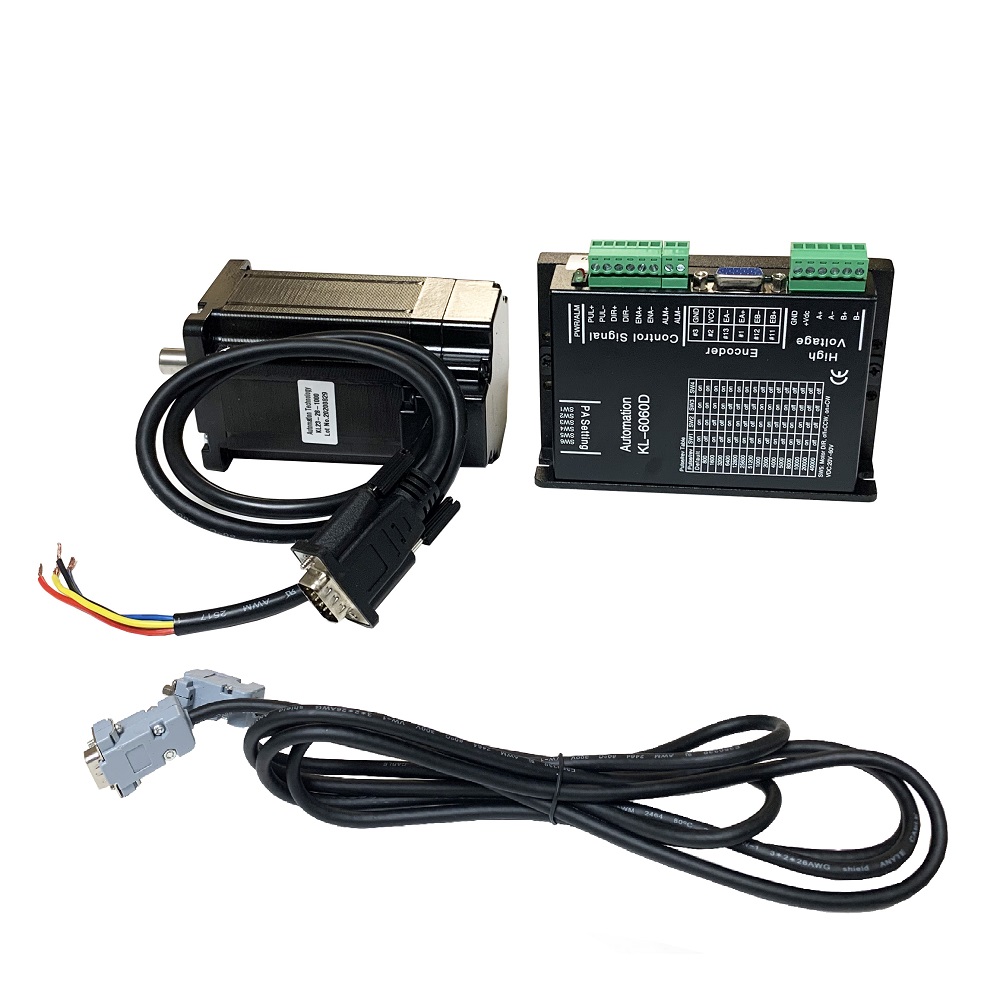

Kits include:

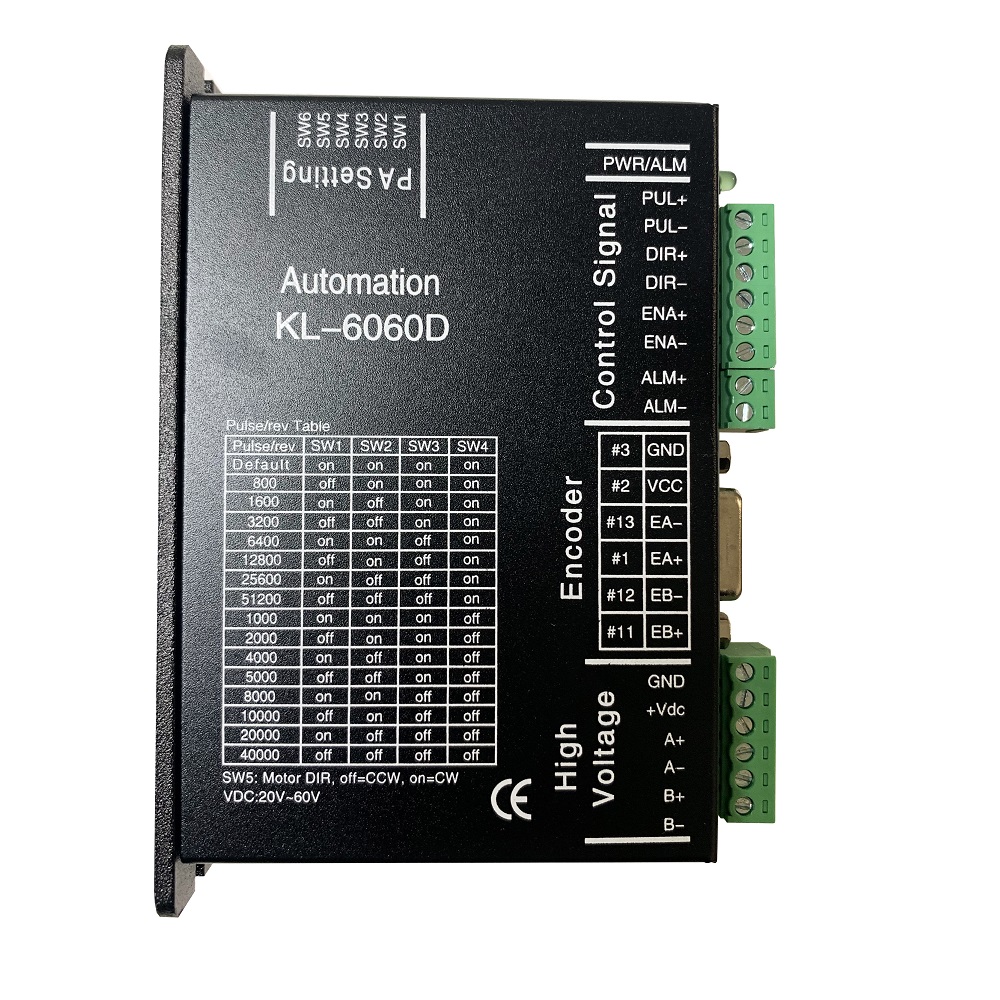

1pc KL-6060D Hybrid Servo Driver

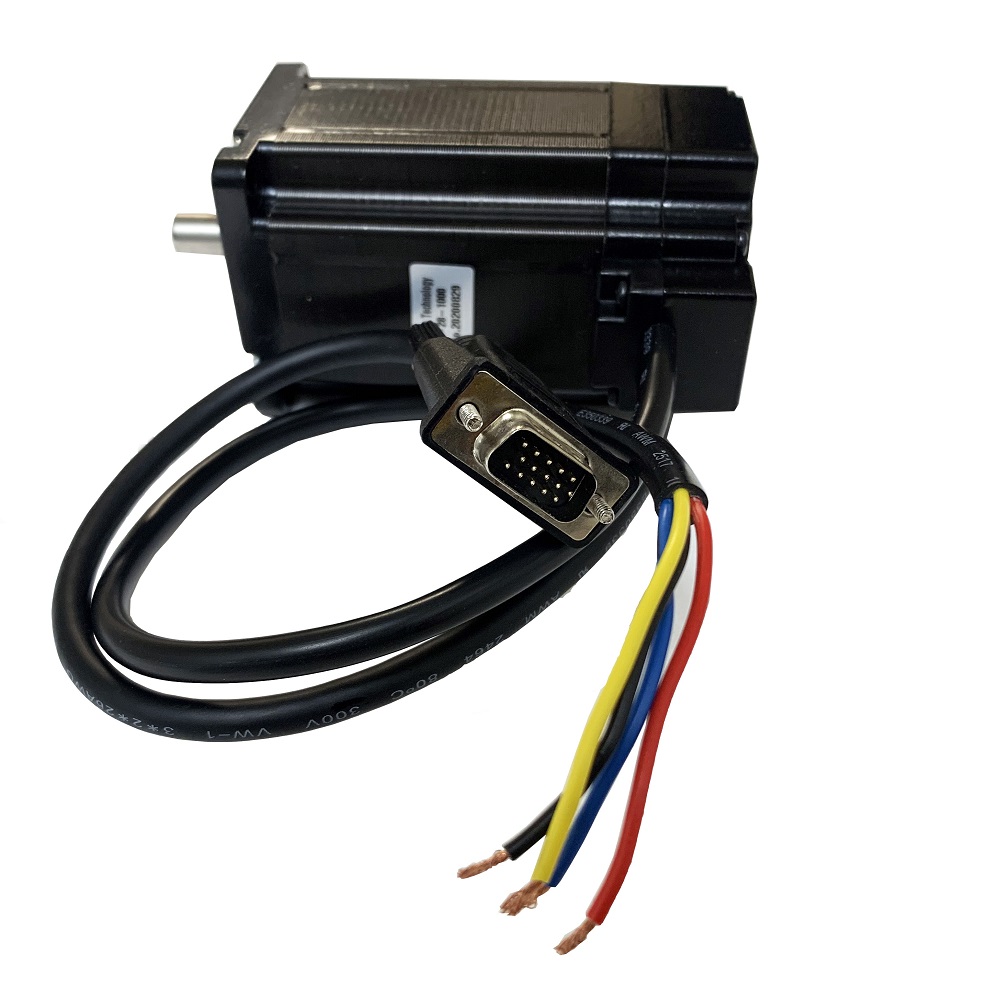

1pc KL23-28-1000 Hybrid Stepper Motor

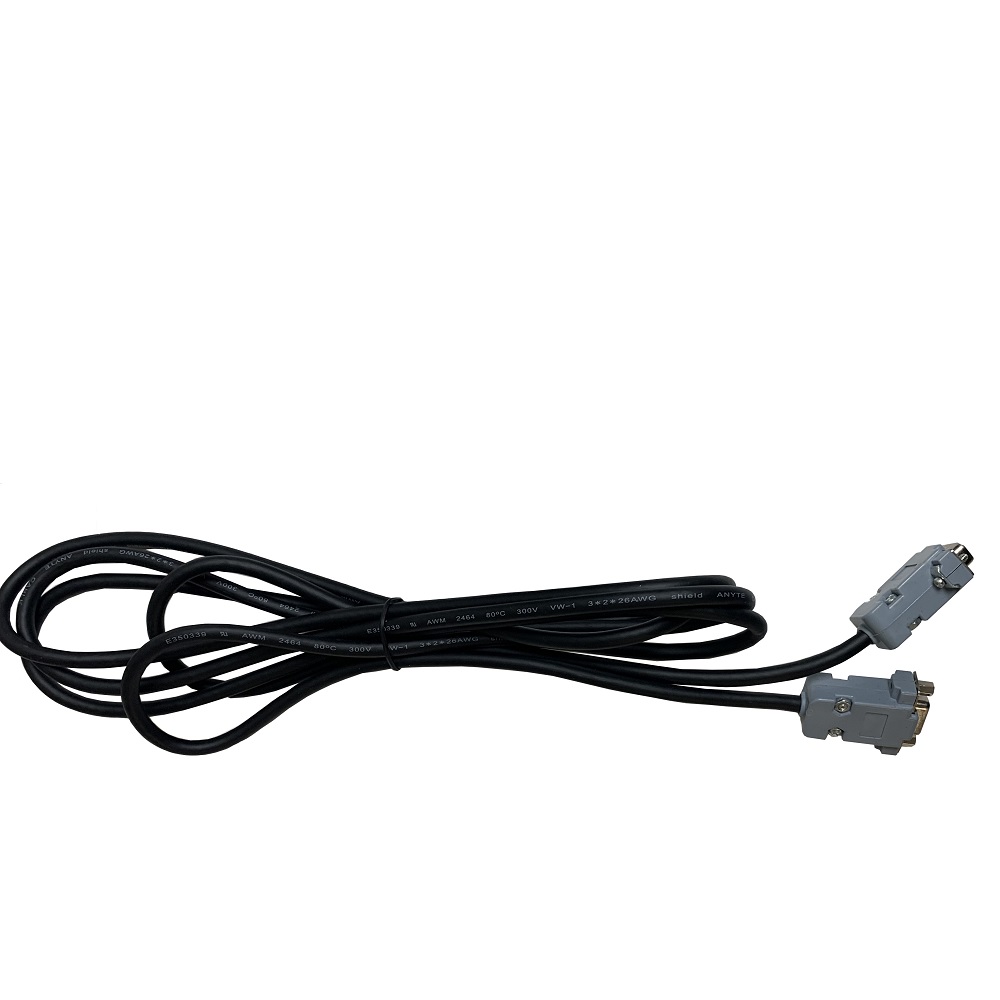

1pc 10ft Extension Encoder Cable


KL-6060D Features:

KL-6060D Manual (614 downloads)

  • Closed-loop control, no longer lose any steps, up to its maximum torque;
  • higher torque and higher speed;
  • Fast response;
  • Reduced motor heating and more efficient;
  • Zero-speed stability;
  • Smooth motion and super-low motor noise;
  • No Tuning and always stable;
  • Lower cost.

Electrical Specifications:

  • Input Voltage(DC): 20 - 60 VDC
  • Output Current: 0 - 6.0 A
  • Pulse Signal Frequency: 0 - 200 KHZ
  • Logic Signal Current: Min: 7MA,
    Typical: 10MA,
    Max: 16MA

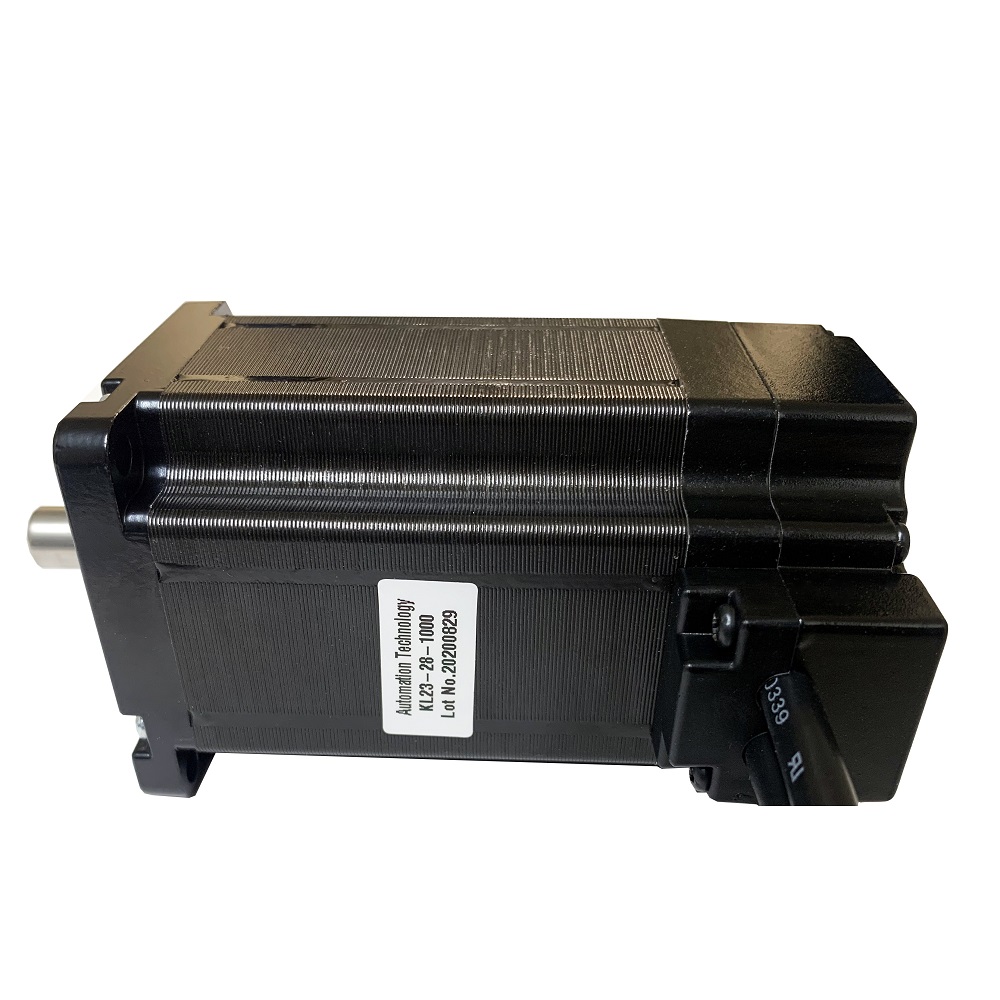

KL23-28-1000 Closed Loop Stepper Motor 425 oz-in, Shaft size: 1/4"

KL23-28-1000 (423 downloads)

  • Number of Phase: 2, Nema 23
  • Step Angle: 1.8° ± 5%
  • Holding Torque: 425 oz-in
  • Voltage: 2.03 VDC
  • Current: 4.5A
  • Phase Resistance (20℃): 0.45Ω ± 20%
  • Phase Inductance (1KHz): 2.0mH ± 20%
  • Rotor Inertia: g· cm²
  • Insulation Resistance: 100MΩ  500VDC
  • Insulation Class: B (130℃)
  • Ambient Temperature: -20℃ to 50℃
  • Ambient Humidity: 15% to 95%

Motor Phase A+(Red)
Motor Phase A- (Blue)
Motor Phase B+ (Black)
Motor Phase B- (Green)


Encoder Extension Cable Pin Out:

Pin out EGND- (White)
Pin out VCC (Red)
Pin out EA- (Blue)
Pin out EA+ (Black)
Pin out EB- (Green)
Pin out EB+ (Yellow)


Download:

KL-6060D Manual (614 downloads)

[Download not found]

You can use this power supply

48VDC/12.5A Switching CNC Power Supply, KL-600-48
