3 Axis Stepper Motor CNC Router / Mill Electronics Kit, Gecko G540 ,48V/12.5A

Product in stock

Price

$557.00

Loading Updating cart...

3 Axis Stepper Motor CNC Router / Mill Electronics Kit, Gecko G540 ,48V/12.5A

Product Description

3 Axis Stepper Motor CNC Router / Mill Electronics Kit, Gecko G540 (110VAC/220VAC)

This picture is showing 4 motors, you only get 3 motors for this kit


This  is nearly plug and play --

1: the only connections required are two wires between the G540 and power supply

2: the AC power cord for the power supply, both of which are provided via convenient screw terminals.

This kit includes:

1: 1 pcs 48V 12.5A switching power supply (110VAC/220VAC)

2: 1 pcs Gecko G540 4 axis stepper motor driver, Current Version

3:  2 pcs High-torque Nema 23 1/4" shaft 381 oz-in stepper motors. These are optimized for the G540  at  3.5A  current , KL23H2100-35-4B

1pcs NEMA34 Stepper Motor – 906 oz/in 6amp Single Shaft (KL34H295-43-8A)

4: 3pcs High-performance flexible, motor cables  12 feet cables.  No soldering

One side wired with BD9 connector, one side wired with motor plug

5: 1 pcs 6 feet Mach3 Parallel Cable DB25M to DB25M

One year warranty

Wiring Diagram  Download:

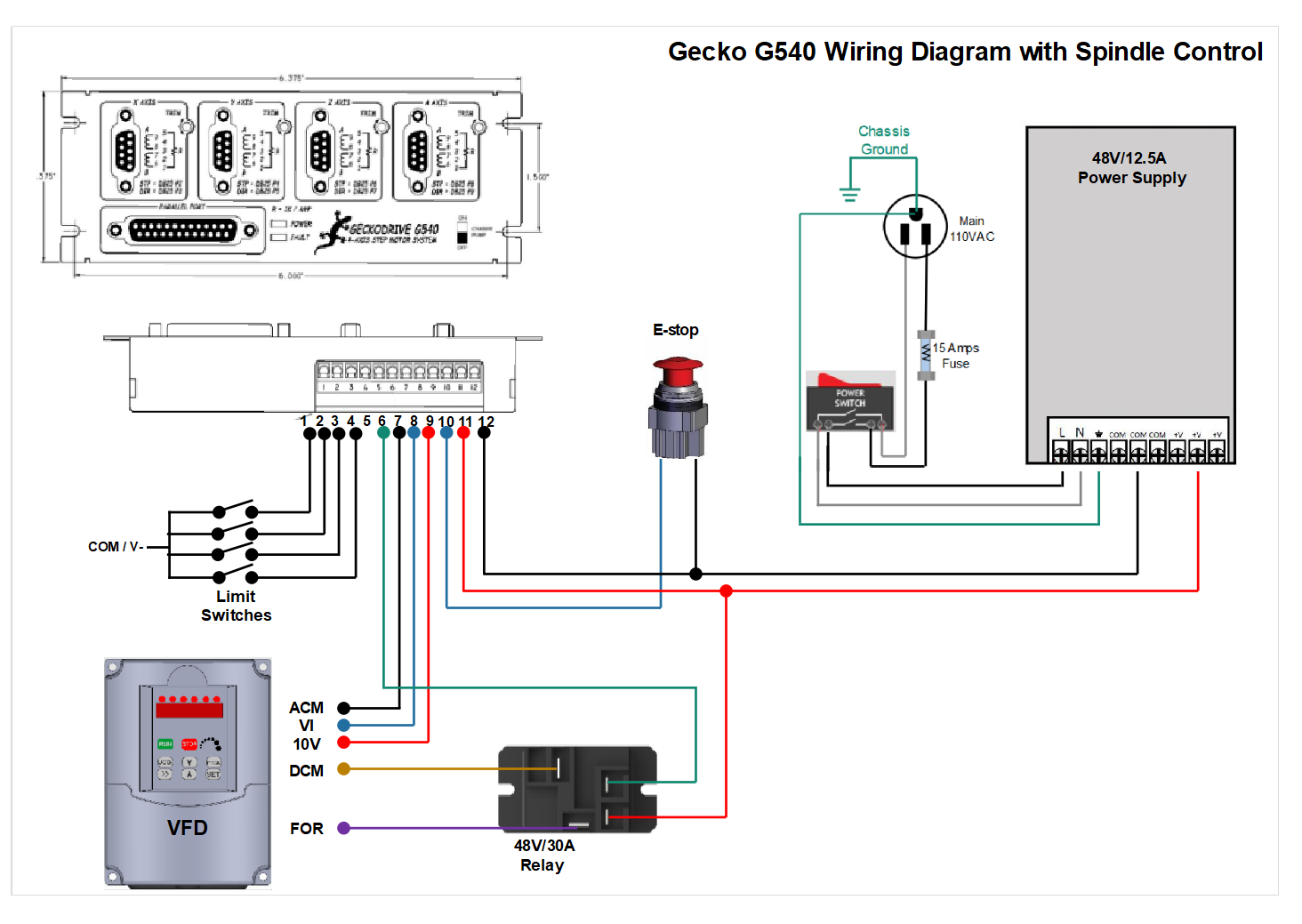

Gecko G540 Wiring Diagram with Spindle Control (1208 downloads)

You can add a UC100 or ESS board
